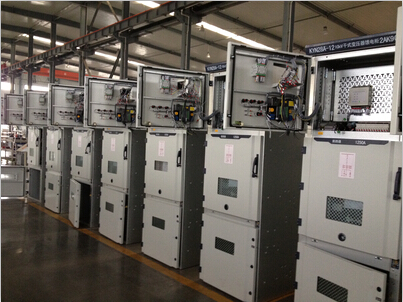

Contact SupplierWe are offering middle voltage switchgear. Rated voltage kv 3.6, 7.2, 12
rated frequency hz 50
power frequency withstand voltage 1min(rated isulated level) kv 42(phase-earth or phase-phase)48(isolated fracture)
lightning impact withstand voltage (rated isulated level) kv 755(phase-earth or phase-phase)85(isolated fracture)
main busbar rated current a 630, 1250, 1600, 2000,2500, 3150,4000
branch busbar rated current a 630, 1250, 1600, 2000,2500, 3150,4000
4s heat stable current ka 16, 20, 25, 31.5, 40
rated dynamic stable current ka 40, 50, 63, 80, 100
protect grade out shell ip4x, cubicle and door open ip2x
internal circuit breaker type abb vd4, simens 3ah3ae, schneider ev12s,toshiba vk, ge vb2, china vep, vs1, vs2
branch busbar rated current 1250a, heat stable current 31.5ka width 800mm
branch busbar rated current 1600a or over 1000mm
inout cable length 1500mm
back overhead inout cable 1660mm
height weigth 2300mm700-1200
