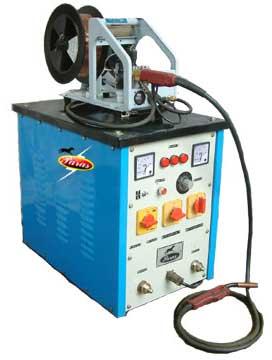

MIG Welding Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We offer Mig Welding Machine. The MIG Welding Machine is one of the wide ranges of products that we offer to customers. The MIG Welding Machine has a rugged and tough design and can be operated with ease. It has high efficiency and the running cost is low. We offer the MIG Welding Machine with burn back facility and its welding is unparalleled.

View More Details

Send Enquiry

Company Information

Parmo Welding Machines (p) Limited

Ring Road, Rajkot, Gujarat

View Number

Member Since 10 Years
Nature of Business Retailer
GST No. 24AAGCP2330R1Z7

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Features	No break down Minimal maintenance Saves Energy Withstands extra ordinary welding environment. Power Source can be use for MMAW and TIG Welding process
Equipments Consist of	Power Source Constant voltage / Current Power Source Thyristorised Controlled 100% Copper wound Forced air cooled Fitted with Amps and volt meter Wire Feeder Two/four driven rollers alloy steel case hardened. Gas pre/post flow to eliminate contamination of the weld. Light Weight, Quick change over spool low down time. Thyristorised D.C. Drive permanent magnet motor to maintain constant speed. Push button for wire inching and gas checking. Torch Heavy duty, Light weight, flexible cable, Gas/Water cooled torch. Flow meter Pressure Regulator Gas pre-heater Remote Control regulator for current and voltage setting from welder end
Optional	Accessories as per customer requirements
Applications	Welding application For fabrication Automobile industries Engineering applications

Specifications

Item	Unit	202 XL	402 XL	KTM 250	KTM 400
Rated Supply	V	400+-10%	400+-10%	400+-10%	400+-10%
Phase	Ph.	3	3	3	3
Frequency	Hz.	50	50	50	50
Load	KVA	9	19	13	24
OCV (DC)	V	20-42	24-52	20-45	24-56
Output (Min./Max.)	V	60/250	80/400	50/250	60/400
Output Steps	Nos	16	16	Step less	Step less
Control Circuit	V	42	42	24	24
Torch	X	Binzel AK-25	Binzel 36-KD	Binzel AK-25	Binzel 36-KD
Motor	X	Permanent Magnet	Permanent Magnet	Permanent Magnet	Permanent Magnet
Transformer Servo	X	No.			No.
Permissible wire dia (mm)		0.8-1.2	0.8-1.6	0.8-1.2	0.8-1.6
