Electric Semi Automatic MIG Welding Machine, Power : 10-15kw

Portable IGBT Inverter Arc Welding Machine 3 In 1 Mig 200 Welders Mig Tig Mma

  WINCOO ENGINEERING CO.,LTD We are engaged in providing inverter welding machine, such as MMA/SAMW welding machine, ARC welder, TIG/MMA2 in 1 welder , MMA,MIG,MAG,TIG 4 in 1 machine, Inverter plasma cutter welding machine, air compressor built-inside plasma cutter.Most of our products are got CCC, CE, EMC, SAA and UL, RoHS certificate. This machine is for you who like to do DIY at home.Its characteristics are: small size, light, easy to arc, anti-stick, no professional welder, and anyone can easily use. *MIG inverter welding machine in direct current (DC).
*Design by IGBT & Mosfect technology. Greatly improves the reliability of the machine.
*High duty cycle, greatly improves the efficiency of welder, energy saving.
*Easy to starting arc little spatter, stable current good formation.
*Widely used in indoor decoration, and high working places jobs.

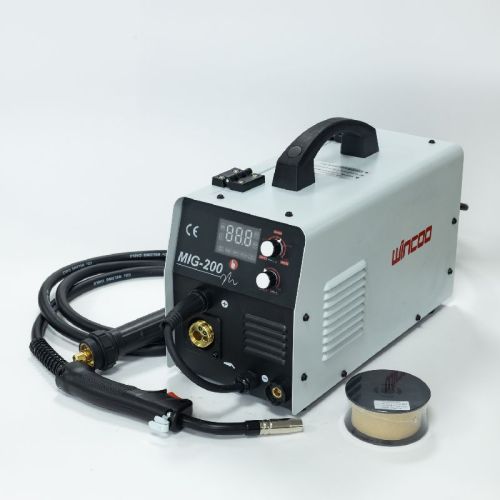

Product name	MIG-200
Input voltage(Vac)	1~220V +10%;1~230V +10%
Frequency(Hz)	50/60
Capacity(KVA)	5.6
Current(A)	40-200
Rated duty cycle	30%
Power factor	0.73
Efficiency(%)	85
Wire feeder	Inner
Wire speed(m/min)	2.5~12
Wire diameter(mm)	0.6/0.8/1.0
Dimension(mm)	510*260*340
Weight(Kg)	12
Insulation class	H
Production degree	IP21S

All models of this type machine

Item	MIG-130	MIG-160	MIG-180	MIG-200	MIG-250
Input voltage(Vac)	1~220V +10%;1~230V +10%
Frequency(Hz)	50/60	50/60	50/60	50/60	50/60
Capacity(KVA)	3.9	4.5	5	5.6	7
Current(A)	40-130	40-160	40-180	40-200	40-250
Rated duty cycle	30%	30%	30%	30%	30%
Power factor	0.73	0.73	0.73	0.73	0.73
Efficiency(%)	85	85	85	85	85
Wire feeder	Inner	Inner	Inner	Inner	Inner
Wire speed(m/min)	2.5~12	2.5~12	2.5~12	2.5~12	2.5~12
Wire diameter(mm)	0.6/0.8/1.0	0.6/0.8/1.0	0.6/0.8/1.0	0.6/0.8/1.0	0.6/0.8/1.0
Dimension(mm)	390*230*270	510*260*340	510*260*340	510*260*340	510*260*340
Weight(Kg)	7.5	11	11.5	12	12.5
Insulation class	H	H	H	H	H
Production degree	IP21S	IP21S	IP21S	IP21S	IP21S

Company manufacturing center   Showroom Welding station Testing Assembling Loading testing Loading test machine Aging test High and low temperature tester and multi test center Finished product Packing Our company is located in Nanjing who was the ancient capital city of six different dynasties before. Now it is well-known cultural and tourist city in China. It needs only around 1 hour from Shanghai by High speed train. We have three share joint factories located in Taizhou and Linyi. We supply different kinds of inverter welding machine such as MMA/ARC welder, MIG/MAG WELDER, TIG WELDER, Plasm cutting power source approved by CSA, CCC, CE and other certificates. 1.These welders can be from 100 Ampere to 1000 Ampere, from home DIY use to Industry use, from single function welding process to multifunction welding process, with reliable quality and favorable price. We deliver consistent quality from our ISO9001 certified manufacturing facilities for each client, each order. 2.In terms of productivity, taking an order of 10 thousand pieces of welders for example, we can finish manufacturing in 3 days. 3.We accept small orders, we cherish and appreciate any of your inquires. Each machine before delivery will be tested at least three times to ensure the quality. 4.We can provide 12 months warranty for whole machine, 18 months for the main board, full life technical support and after sale service. 5.We are able to provide online demonstration to show the performance before proceeding your procurement, online videos showing during production and packing, online technical support after sales. WINCOO'S Culture to client is:To provide more favorable and reliable welders is WINCOO's unremitting pursuit of the goal.Win based on Cooperation is our business philosophy,Positive and Active response is our attitude,Consideration on behalf of client is our ethic and responsibility,Support client to succeed is our purpose,Mutual benefit is our win-cooperation expectation.To Wincoo ourselves is:Integrity, generosity, intelligence and inclusiveness are our characters. Foresight and pragmatism are our qualities. Loyalty, responsibility and ambition are our basic requirements. The secret of development is to beat expectations.Success is determined by these three factors: people, people and people.The absence of ethics negates everything. Integrity is essence. Communicate openly and frankly.United we triumph. Passionately begun, halfway done. Growth is a process of overcoming adversities.Be curious. Be grateful.Execution without any excuses. We sincerely expect your inquiry, visit and inspection, and deeply hope to be your long time reliable partner in China. 1. Who are we? We have 3 share joint factoys in China with total around 10000 square meters with more than 150 peoples.We provide MMA/ARC welder, MIG/MAG WELDER, TIG WELDER, air compressor built-in Plasma cutting power source. 2. What do we manufacturing? We're mainly producing Inverter Welding Machine of MMA welders from 100 Amp to 500Amp (DIY or Industry purpose),TIG welders from 150Amp to 300Amp, (DC or AC/DC),MIG/MAG welders from 120Amp to 500A, (Gas or Gasless),Air Plasma Cutter from 40Amp to 120Amp, (Pilot or HF arc strike). 3. How can we guarantee the quality? We can provide 12 months warranty for whole machine, 18 months for the main board, f. Meanwhile, we offer whole life on-line technical supports for operating guide and troubleshooting. 4. How to place order? I haven't done business with you guys before,how can i trust your company? We are able to provide online demonstration to show the performance before proceeding your procurement, online videos showing during production and packing, online technical support after sales.You may place order online through alibaba, it is safe for your money. 5, How to inspect? Weclome your third party or SGS or your friend to come an inspect before delivery. 5. Why choose us? *OEM/ODM is available. *Small order is acceptable, even 1 piece; *Quick Delivery is available in 15 days; *12 months machine warranty, 18 month main borad warranty, whole life technical support and after sale service; *Has strong will of developing local agent or distribitors with your own brand; *Provide online demonstration before order, online video during production and packing, video support after sales; *Provide free cover design service(Your own brand).
