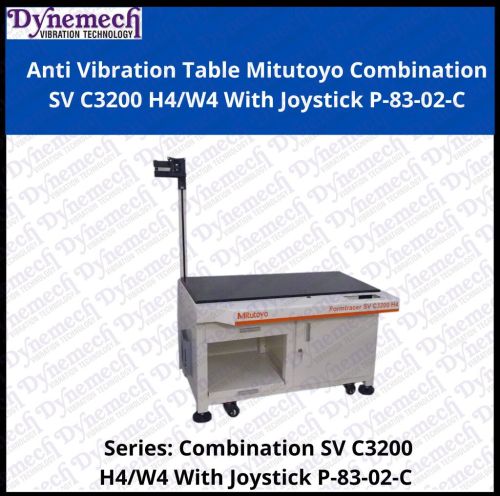

Mild Steel Anti Vibration Laboratory Table for Formtracer SV C3200 H4/W4,P-83-02-C

1. Granite base of size L 1200 X B 600 X T 50 mm
2. 60 mm Tubular Structure with cross member
3. Wrap Around Construction with left angular profile
4. 65 X 65 mm AV pads at 9 places
5. 4 No’s DLP3 (AV disc with adjustable screws) at Ground Level
6. 4 No’s – 3” Wheel
7. Front keyboard panel to keep keyboard and mouse with laser cut joystick pocket, top rim and Z-plates at bottom with support plate to fix joystick
8. Front RH single door with handle lock , LH side top drawer and bottom pull-out tray for printer.
9. Power Strip in Rear; controller and UPS inside structure
10. Drawing Pouch LH Side, cable manager at rear side
11. Leveling Ball, Spanner 24/27
12. Powder Coat, structure, side sheets and doors RAL 9002
13. Instrument sticker
14. Overall dimensions: L 1220 X B 770 X H 730 (over granite base) mm
15. Weight: kg
16. Execution in wooden box

Note- GST and Freight Charges are not included.
