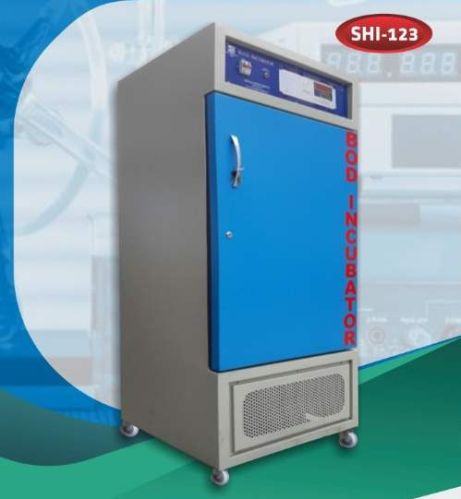

Automatic Mild Steel BOD Incubator, For Industrial Use, Medical Use, Certification : CE Certified, ISO Certified

₹ 35,000 - ₹ 1.50 Lakh / Piece

Frequency50Hz
MaterialMild Steel, Stainless Steel
Brand NameSHIVAM
CertificationCE Certified, ISO Certified
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

5.0/5

Member Since 14 Years
Nature of Business Retailer
GST No. 07ACAPV8060H1ZE

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Volume100 TO 1000 LTR
Automation GradeAutomatic
No of Shelves3 Shelves
Brand NameSHIVAM
Power Supply220V
Country of OriginIndia
Number Of FlowerBod Incubator
MaterialMild Steel, Stainless Steel
CertificationCE Certified, ISO Certified
ApplicationIndustrial Use, Medical Use
ConditionNew
Frequency50Hz
Temperature5 TO 75C

Double walled Chamber with interior walls made of stainless steel. The exterior is made heavy mild Steel finished with stoving white enamel. The door is also a double walled construction. The Temperature range is from 5-60°C, with an accuracy of +/-0.5°C, controlled by Digital Temperature controller cum Indicator. Temperature below ambient is maintained by a hermetically sealed TECHUMSHAH/KIRLOSKAR Condensing Unit / Compressor with complete unit provided at the bottom, Complete with Stainless Steel Trays, two air circulations fan and unbreakable acrylic transparent, inside door. To work on 220/230 V, Single phase AC Supply.

Technical Specifications 01

MODEL NO.	INNER CHAMBER (W X D X H)	CU FT. (LITERS)	LTS	SHELVES (NO'S)
SHI-123A	450X610X410mm	4	112	2
SHI-123B	500X825X415 mm	6.1	171	2
SHI-123C	565X865X550 mm	10	280	2
SHI-123D	650X875X550 mm	12	336	3
SHI-123E	650X1050S550 mm	15	420	3

Technical Specifications 02

Temperature Controller	Microprocessor based PID controller
Temp Displayy	Digital
Air Circulation	2 NOS Forced by 1/35fhp motor and blower
Heating Element	Stainless Steel
Moc	Exterior: MS powder coated Interior: 304 stainless steel
Insulation	Glass wool/Puff
Door	Solid doors with gasket & lock
Inner Door	Glass with Aluminum Frame
Shelves	2-3 no of steel wire.
Cooling System	Hermetically sealed COPELAND /KIRLOSKAR Condensing unit/compressor
Illumination	By LED tube
Control Panel	MCB, Main& Cooling ,Heating indicator, PID temp controller,
Door Lock	Provided with Lock & Key
Optional	Outer body of Stainless steel 212/304 Illumination by 3 nos LED tubes 0-24 Hrs Digital timer Rs-232 computer interference compatible to computer with software. NABL calibration of digital temp controller.
