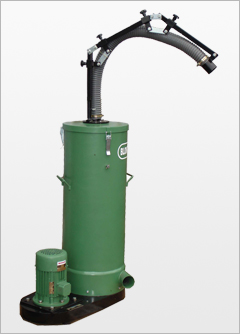

Mild Steel Dust Extractor, for Industrial, Voltage : 380V

Listing ID #1378365

34,000 - 78,000 / Piece
Get Latest Price
  • MOQ 1 Piece(s)
  • MaterialMild Steel, Stainless Steel
  • ApplicationIndustrial
  • Voltage380V
  • ConditionNew
  • Supply Type Supplier
Preferred Buyer From : India ( Maharashtra only ) & All other countries
View More Details
Send Enquiry

Company Information

  • Member Since 14 Years
  • Nature of Business Retailer
  • GST No. 27ABWPG0505H1ZP

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Material Mild Steel, Stainless Steel
  • Application Industrial
  • Voltage 380V
  • Condition New
  • Stirrer diameter 70 mm
  • Throughput 350 l/hr
  • Motor Power 0.37 kw
  • Power Source Electric
  • Settler length 700 mm
  • Speed Range 50 to 300 RPM

Dust extractors are machines which are designed around the concept of high air flow with low suction power , mainly in order to catch dust arising out of operations of machines like grinders etc, the dust extractor in view of the large air flow sucks in dust beig thrown out of a machine , by virtue of its high air flow.
Our dust extractors are mainly designed for individual machine operation , thereby resulting in savings over centralised dust extraction system which uses high power .

Applications: dust extractors find many industrial application which include ,grinding operations, buffing operations, polishing operations, pcb drilling , pcb routing etc. Chip extractors are used in many wood working machines where large amount of wood shavings , thermocole pieces etc are generated


Technical Specification

Model No. HE-125D HE-200D HE-400D HE-H500D HE-750D
Motor (3Phase)- hp/rpm 0.5,3000 0.5,3000 2,3000 3,2800 5,2800
Suction Power- mm.wg 125 200 400 500 750
Air Flow-Cubic- mtr/hr 320 350 700 1250 1650
2Container Capacity- ltrs 8 10 15 15 15
Hose Diameter- mm 60 60 60 75 75
Dimensions LxWxH- mm -x550x770 -x550x770 900x620x1000 900x620x1000 900x620x1000
Weight- kgs 35 40 90 95 120



Additional Information

  • Port of Dispatch MUMBAI
  • Delivery Time 7 -15 DAYS
