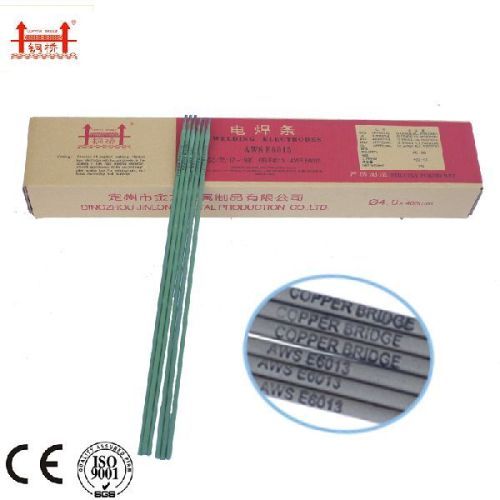

Mild Steel Welding Rod AWS E6013

Product Description Mild Steel Welding Rod AWS E6013 AWS E6013 is a rutile based, medium coated general purpose electrode suitable for welding mild steels. The superb and controlled flux formulation ensures excellent performance of the electrode in AC/DC in all welding positions. With its soft, forceful steady arc, easy slag detachability, fine rippled & shiny bead, and characteristics like easy maneuverability in all positions make COPPER BRIDGE a welder friendly electrode. Aws E7018 used for welding carbon steel and low-alloy steel strutures, such as 16Mn,etc. AWS E6011 suitable for butt welding ,fillet welding and lap welding on thin plates, such as low-carbon steel structures like flues of power stations, air ducts, transformer oil tanks, hulls, exterior panels of cars, etc. aws mild carbon steel welding electrodes e6013/ welding electrode grades steel wire rod Product Name E6011 E6013 E7018 Model CB-J425 CB-J421 CB-J507 GB E4311 E4313 E5018 Diameter(mm) 2.5-5.0 2.5-5.0 2.5-5.0 Type of Coating Cellulose Type Tiatania Type Low-hydrogen Type Current AC DC AC DC AC DC  Chemical Composition of Wire(%): C Mn Si S P ≤0.12 0.3-0.6 ≤0.35 ≤0.035 ≤0.040  Mechanical Properties of Deposited Metal: Test Item σb(MPa) σc(MPa) δs(%) Guarantee Value ≥420 ≥330 ≥17  Recommended Welding Current: Electrode Diameter(mm) 2.0 2.5 3.2 4.0 5.0 Current Range(A) 40-70  50-80 80-120 150-190  180-240 Packing 2.5*300mm 2.5kgs/inner box
