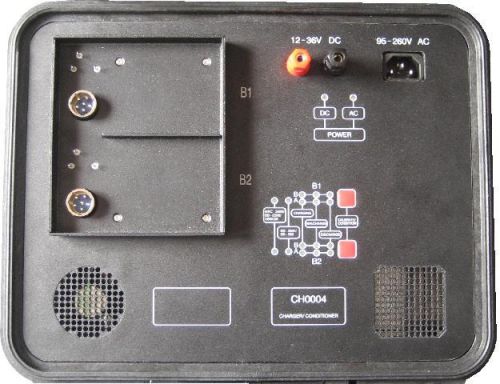

Military Battery Charger CH0004

Mailitary Battery Charger Ch0004
part No: Ch0004
nsn :6130-01-559-0124
dc Input Range: 12 to 36 Vdc, Mil-std 1275
ac Input Range: 115-230 Vac,50 to 60 Hz
charge Rate: 1.0 Amp per String(bb-390 / 590 Batteries )
1.1 Amps per String(bb-2590 / Ubi-2590 Batteries)
led Indicators:battery Type,Charging, Discharge, 90% Charged
size: 14 L X 12 W X 6 D (35.56 X 30.48 X 15.24 Cm)
weight: 12 Lbs. (5.44 Kg) Without Batteries
storage Altitude :27,000 Ft (8,229.6 M)
operating Altitude :55,000 Ft (16,764 M)
humidity :95% Relative
accessories :included Ac and Dc Cables
allows Operation from Nearly Any Ac or Dc Power
source Likely to Be Encountered Worldwide.
any Combination of the Following Batteries Can Be Recharged:
bb-390/u -nickel Cadmium (nicd)
bb-2590 / Ubi-2590 (ubbl02) / Mrc-2590 / Ubbl09 / Ubi-2590
smbus (ubbl10)-lithium-ion (li-ion)
unattended Charging
- Smart Charge Modules that Detect Open or Shorted
cells.if a Defective Cell is Detected,The Ch0004 Will Not
start Charge Cycle
- No Programming or Special Instruction Set to Achieve
safe and Complete Recharge of Battery
- in No Event Will a Battery Be Overcharged Using the
smart Charging Techniques of the Ch0004
conditioning Cycle
- Automatic Discharge/recharge Function Included. the
conditioning Cycle Can Be Activated Individually per Battery
at Operator's Option
recharges Each String of Cells
- to Assure a Positive Recharge of the Battery Each
individual String of Cells in the Battery is Recharged
independently
ce Mark Approval
- the Ch0004 Has Approval for Ce Mark.
