Military Spe Inverters

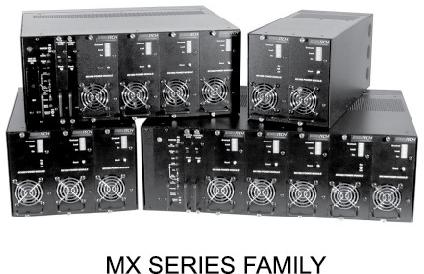

We offer exceltech military spe inverters inverters 2k watt (mxxo). Mx series inverters are the world’s first truly redundant, modular inverter system; the most reliable inverter system available. Inverter systems up to 20kw at 120 vac single phase, 40kw at 240 vac bi-phase or 60kw at 208 vac 3 phase.
exeltech manufactures the world’s first truly redundant, modular inverter system; the most reliable inverter system available. No single malfunction will cause the inverter system to fail. Modules are “hot” insertable. Power levels are expandable, and modules can be added or replaced without interruption to power to your critical loads.
the mx system can be configured for power levels from 1 to 20kw with 120 vac output. Up to 40kw at 240 vac bi-phase or 60kw at 208 vac 3 phase with many input and output voltages also available.
a control card and any number of additional 1000 watt power modules combine to make a standard inverter. This type of system can be expanded as power requirements are increased and upgraded to be n+1 redundant as desired.
the mx system is extremely compact and lightweight. Power modules weigh only seven pounds each.
output voltage is precisely regulated, so that no measurable voltage change occurs on the output as input voltage fluctuates. Similarly, less than 0.5 volt change in output voltage will occur when the output load varies from 0 to 100% of rated power. With distortion of 2% maximum, this inverter offers the cleanest sine wave power available.
models are available that cover all standard battery systems. Custom models can be designed to meet your specific input voltage requirements.
n+1 redundant
expandable
remote switching
true sine wave
“hot” insertable
1000 watt modules
remote metering
adjustable power
temperature:-25 to 40℃ full power, aerate 20% per 10 ℃.above 40℃.
humidity:5 to 95% non-condensing -200 to 10k feet full power,derated above 10k
audible noise:less than 45dba
cooling:1kw-thermostatically controlled forced air
finish:polyurethane base paint
warranty:full year parts and labor.
