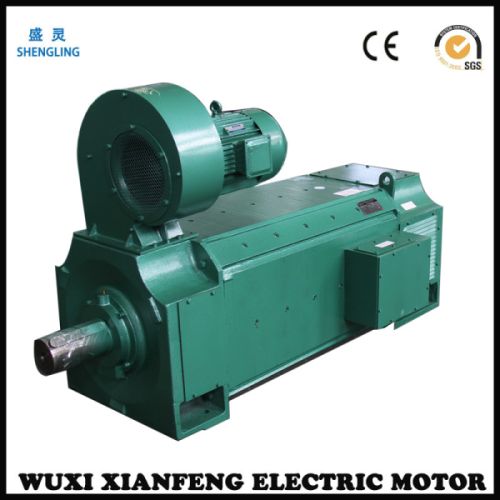

Mill Duty DC Motor

We are offering dc motor.
the z4 series dc motor are dominant products of our factory with over 25 years technic experience.widely
used as prime drives in various machinery,such as lift and cableway,rolling mill,hoisting and travel gear for
cranes,extruders in the plastics industry,printing machines and paper machines.
outline mounting dimensions of the motors comply with iec72
standard,except for the axial distance between the mounting holes(dimension b).performance and technical
requirements of the motors can be checked in accordance with iec34-1 standard of the iec or din57530 norm
of the deutsche industrie-norm.the angular shape of the machine makes good use of space.the motors have
laminated yokes,which means when used on rectifier power supplies they can endure ripple and rapid current
changes(load change) under dynamic condition.
the stator design leads to high accuracy of pole spacing and consequent good communication.
the motors are class f insulated with reliable insulating construction and impregnating process,ensuring stable
dielectric performance and excellent heat dissipation.
the motors possess the features of small size,good performance,light weight,large output,high efficiency and
reliability,being able to match the current international advanced level.
the motors can be lastingly operated from fully controlled three phase bridge without a smoothing reactor.
motors for 160v may be operated on single phase bridge thyristor.in that case,a smoothing reactor,whose
inductance is specified in the relevant technical data,should be inserted in the armature circuit to suppress
ripple current.
