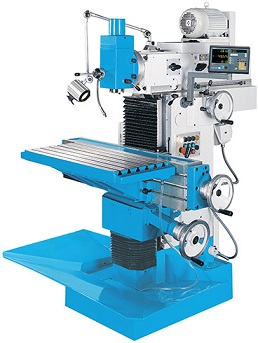

Milling Machine, Packaging Type : Carton Box

We offer powerful tool milling machines.
automatic feeds on all 3 axes;
outer arbor supporting for horizontal milling;
heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;
steamlined arrangement of operating controls on the right side;
vertical head quill for drilling, with hand lever feed;
quill stroke 80mm;
central lubrication;
hardened guideways;
can be enquiped with digital position indicator.
standard accessoires:
complete tool
cutter arbor (dia.î¦16,22,27,32mm)
reducing sleeves (morse1,2,3)
spring collect (dia.î¦2,3,4,5,6,8,10,12mm)
optional accessories:
dividing head
machine vice
universal angluar table
rotary table
boring head
3-axis digital position indicator
main technical data:
specification���
model m40 m32 m30a
work space dimensions 400 x 800 mm 320 x 750 mm 300 x750 mm
vertical table dimensions 250 x 1060 mm 225 x 830 mm 225 x 830 mm
t-slots,work table 6 x 14 x 63 mm 5 x 14 x 63 mm 5 x 14 x 63 mm
t-slots,vertical table 3 x 14 x 63 mm 3 x 14 x 63 mm 2 x 14 x 126 mm
longitudinal travels(x) 500 mm 45(manual) 400 mm 405(manual) 395 mm
transverse travel(y) 400 mm 305(manual) 300 mm 200 mm
vertical travel(z) 400 mm 400(manual) 390 mm 390(manual) 380 mm
horizontal spindle(min.) 95 â± 63 mm 85 â± 63 mm 35 mm
horizontal spindle(max.) 475 â± 63 mm 485 â± 63 mm 425 mm
vertical spindle(min.) 55 Ⱡ63 mm 85 Ⱡ63 mm �
vertical spindle(max.) 445 Ⱡ63 mm 440 Ⱡ63 mm �
max.throat 540 mm 160 mm 188 mm
speed range 40~2000 rmin. 40~2000 rmin. 40-1600 rmin
spindle mount iso 40, taper 7:24 iso 40, 7:24 iso 40, taper 7:24
x,y,z axis feeds 10~380 mmmin. 10-380 mmmin. �
rapid feed 1200 mmmin. 1200 mmmin. �
quill stroke 80 mm 80 mm 80 mm
main motor rating 3 kw 2.2 kw 2.2 kw
feed motor rating 5 kw 3.59 kw �
dimensions(lxwxh) 1390 x 1430 x 1820 mm 1215 x 1200 x 1800 mm 1170ã�1210ã�1600 mm
weight 1400 kg 1300 kg 1100 kg
max.swivels of vertical cutting head ã�� â±90⺠â±60â°
