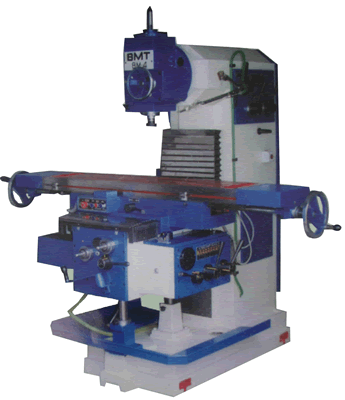

Milling Machine, Pressure : Medium Pressure

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Features : GUM series universal Milling machine with all geared head, single feed / 3 feed automatic with/without rapid drive with milling vice optional accessories like slotting, rack cutting, vertical attachments, dividing head, rotary table, collet set, etc. also available.

View More Details

Send Enquiry

Company Information

Al Gouri Machinery Trading L.L.C.

Dubai

View Number

Member Since 10 Years
Nature of Business Supplier

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MODEL	GUM 1100	GUM 1300	GUM 1500
Table Size	1100 x 256 mm	1300 x 300 mm	1450 x 350 mm
T. Slots number and size	3-12	3-17	3-17
Feeds
Longitudinal	500	625	750
Cross	200	250	350
Vertical	400	450	500
Feeds with/without rapid	4(12-125)	4(12-125)	4(12-125)
Cross	4(12-125)	4(12-125)	4(12-125)
Verticle	4(12-125)	4(12-125)	4(12-125)
Taper of Spindle	ISO-40	ISO-40	ISO-40
Spindle Speeds	45-480	45-480	45-480
Arbour Dia	25	25	25
Spindle Motor	2 HP 1440 RPM	3 HP 1440 RPM	5 HP 1440 RPM
Feed Motor	2 HP 960 RPM	2 HP 960 RPM	3 HP 960 RPM
Pumps Motor	0.1 HP	0.1 HP	0.1 HP
Net Weight	1480 kgs	2220 kgs	2675 kgs
Gross Weight	1680 kgs	2520 kgs	3075 kgs
