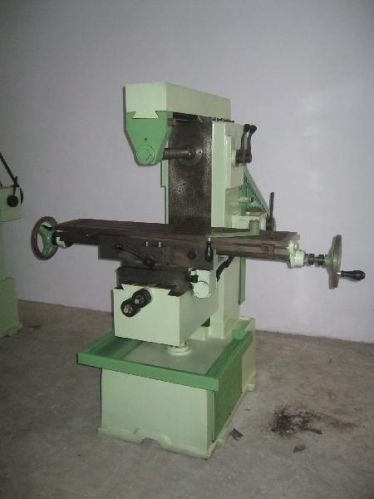

Milling machine specification
table
sr. No. table m-1 m-112 m-2 m-3
1 table width & lenght 230 x 1050 250 x 1070 280 x 1270 310 x 1450
2 t-slot 3 3 3 3
3 distance between t slots 52 mm 56 mm 67 mm 78 mm
3 t slots size 16 mm 16 mm 16 mm 16 mm
axes travel
a table travel longiinal 540 mm 560 mm 660 mm 735 mm
b cross travel 190 mm 230 mm 255 mm 310 mm
c knee travel 350 mm 400 mm 560 mm 600 mm
feeds
a table feeds 3 3 3 3
main spindle
a spindle taper iso 4045 iso 4045 iso 4045 iso 4045
b spindle speeds rpm 6 speeds 50-700 6 speeds 50-700 9 speeds 40-1050 9 speeds 40-1050
c cutting airbor 25.4 mm 25.4 mm 32 mm 32 mm
power
a motor 2 hp 960 rpm 2 hp 960 rpm 5 hp 1440 rpm 5 hp 1440 rpm
b coolant pump 0.10 hp 0.10 hp 0.10 hp 0.10 hp
space required
a lenght 980 mm 1000 mm 1500 mm 1600 mm
b width 580 mm 600 mm 900 mm 1300 mm
c height 1600 mm 1650 mm 1850 mm 2100 mm
d wight 1000 kg 1400 kg 2200 kg 3200 kg
note : all the dimension are approximate
