Contact SupplierThe core part of clay brick production line is the vacuum brick making machine which can make two kinds bricks, solid clay brick and perforated brick by using different mold. Without drying, the clay bricks are grab by the robot hand automatically onto the tunnel kiln car, and enter into the tunnel kiln for firing and then shipped by professional kiln car out of the kiln, for stacking for sell.
Clay brick production flow: feed raw material conveyor roller machine conveyor biaxial mixer conveyor vacuum brick extruder get mud strips automatic cutting machine cut strips into bricks conveyor onto the kiln ca kiln. The whole clay brick production line is fully automatic(auto mechanical clutch, brick cutting machine, kiln cars, tractors.) By replacing the mold(also called mud mouth) to get Porous bricks.

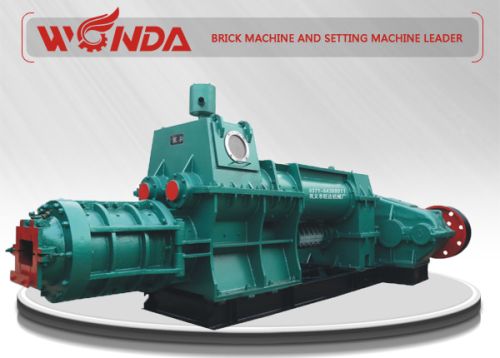

This Daily Output of 0.1-0.2 Million Clay Brick Production Line need 2 models brick making machines, JZK50/45 and JZK50/50. It is a double stage vacuum brick extruding machine with wear-resistant metalization technology, which is an efficient brick making machine for clay brick manufacturing unit.
Products | Specification | QTY | Note |
---|---|---|---|
Feeder | 4000 | 2 | With Motor 2 set 6-pole 7.5KW |
Roller Crusher | 800*1000 | 1 | With Motor 1 set 4-pole 30KW 1 set 4-pole 22KW |
Double Shaft Mixer | 4000 | 1 | With Motor 1 set 4-pole 55KW |
Brick Making Machine | 50/45 | 1 | With Motor 1 set 6-pole 132KW Vacuum Pump: 1 set 4-pole 15KW |
50/50 | 1 | With Motor Upper: 1 set 4-pole 55KW Lower: 1 set 6-pole 160KW Vacuum Pump: 1 set 4-pole 15KW |
|
Brick Setting Machine | 1 | Include strip cutter, brick slitter, transition bed, brick separator, lifter, fixtures, pumping stations and operating cabinet. |
|
Brick Setting Machine Walking Frame, Column | 1 | ||
One-Way Ferry Car | 1 | With Motor | |
Ferry Pusher | 80T | 2 | With Motor |
Rail Car | 6 | With Motor, Steel Wire Rope | |
Belt Conveyor | 5 | With Motor, Conveyor | |
Coal Pulverizer+Belt | 1 | With Motor |
Products | Specification | QTY | Note |
---|---|---|---|
Feeder | 4000 | 2 | Without Motor 2 set 6-pole 7.5KW |
Roller Crusher | 800*1000 | 1 | Without Motor 1 set 4-pole 30KW 1 set 4-pole 22KW |
Double Shaft Mixer | 4000 | 1 | Without Motor 1 set 4-pole 55KW |
Brick Making Machine | 50/45 | 1 | Without Motor 1 set 6-pole 132KW Vacuum Pump: 1 set 4-pole 15KW |
50/50 | 1 | Without Motor Upper: 1 set 4-pole 55KW Lower: 1 set 6-pole 160KW Vacuum Pump: 1 set 4-pole 15KW |
|
Brick Setting Machine | 1 | Include strip cutter, brick slitter, transition bed, brick separator, lifter, fixtures, pumping stations and operating cabinet. |
|
Brick Setting Machine Walking Frame, Column | 1 | ||
One-Way Ferry Car | 1 | With Motor | |
Ferry Pusher | 80T | 2 | With Motor |
Rail Car | 6 | With Motor, Steel Wire Rope | |
Belt Conveyor | 5 | With Motor, Conveyor | |
Coal Pulverizer+Belt | 1 | With Motor |
