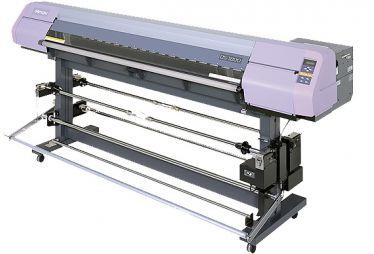

Mimaki Direct Textile Printer

We are offering mimaki ds-1800 direct textile printer (73-inch). Introducing a high resolution system that is more ecologically friendly and provides more efficient operation than traditional sublimation transfer systems.
The ds-1800 textile printer is a 73-inch “direct to dye sublimation” printer that doesn’t require transfer medium.
A new mimaki inkset formulation creates a robust color gamut when applied directly to polyester based roll materials.
Sharp, high-quality print
direct printing provides finer lines and sharper edges than traditional transfer systems.
Environmental-friendly
no need to use transfer paper.
Reduced cost
this system requires no transfer paper or liner paper, so running costs are much lower than the costs of traditional transfer systems.
Improved operational efficiency
the system avoids cockling of printed transfer paper and mistakes made by wrinkling transfer paper when transferring the ink onto fabric.
Equipped with media take-up device and media feeder with a dancer roller
the tension bar moves up and down to adjust proper feeding. Suitable for continuous operation.
Ink tray
in order to prevent ink that has penetrated the fabric from marking other fabrics, a tray is provided.
High-speed print heads
the head configuration is an array of two staggered print heads. 1-way (single ink set) for fast printing and 2-way (dual ink set) for multipurpose printing are available.
In addtion, both print modes can utilize either 4-color high speed printing or 6-color high quality printing.
Fabric supply mechanism
in addition to the drive roller and friction roller, the take-up unit and feeding unit with a dancer roller cause tension in the fabric to prevent it from wrinkling.
The fabric retainer holds both edges of the fabric, preventing it from touching the print head.
mimaki ds-1800 direct textile printer (73-inch)
technical specs & details
model ds-1800
print head method piezo-electric drop-on demand
nozzle configuration eight heads (4 x 2 lines, stagger arrangement)
resolution 360, 540, 720 dpi
maximum printing width 1850mm (72.8")
head height adjustment 1.2mm (0.04") to 10mm (0.39")
printing 6-colours
nozzle 180 nozzles per colour
print mode
(1*) 6-colour printing 360 x 360 dpi: 248 pass biuni directional
360 x 540 dpi: 3612 pass biuni directional
360 x 720 dpi: 4816 pass biuni directional
720 x 720 dpi: 4816 pass biuni directional
4-colour printing 360 x 360 dpi: 124 pass biuni directional
360 x 540 dpi: 3612 pass biuni directional
360 x 720 dpi: 248 pass biuni directional
720 x 720 dpi: 248 pass biuni directional
ink type dye sublimation c, m, y, k, lc, lm
aqueous pigment c, m, y, k
ink volume
(2*) 6 colour print 1-way: 220cc x 2colour, 2-way: 220cc x 1colour
4 colour print 1-way: 220cc x 4colour, 2-way: 220cc x 2colour
media type polyester cotton (3*)
width 200mm (7.8") - 1900mm (74.8")
thickness less than 7mm (0.27")
outside diameter less than ø250mm (9.84")
roll weight less than 30kg (66lbs)
roll inside diameter 1.5" - 3"
printing surface printing is possible on either sides
roll end treatment light adhesive tape is used to allow media to be removed
margin (roll fabric) 10mm (0.39") ±0.5mm (0.01"), left and right side
interface ieee-1284 ieee-1394
command mrl-1e (escpv.1 base) mimaki original command
power requirement ac100v to 240v ±10%, (auto voltage) 5060hz±1hz
power consumption less than 500w
operational environment temperature: 15°c (55°f) to 30°c (86°f) humidity: 35% to 65%rh (no condensation)
dimentions width 3040mm (119.7")
depth 940mm (37.0")
height 1350mm (53.2")
weight 250kg (551lbs)
