Mimaki Flatbed UV Curable Inkjet Printer

We are offering mimaki jf-1631 flatbed uv-curable inkjet printer. Mimaki jf-1631 is the large format, uv-curable inkjet printer with the versatility to print on numerous uncoated substrates including corrugated plastics, acrylics and uneven or irregular materials.
With a maximum resolution of 1200 x 1200 dpi, jf series is suitable for sign and pop display graphics for both long and close viewing distances.
Using the standard white ink, jf series can print bright, vibrant color even on transparent and colored media.
With the newly developed clear liquid, you can achieve a high-gloss finish while also improving color-fastness.
Jf series is equipped with dual uv lamps, enabling high speed, bidirectional printing. It is a dynamic printer with functions to maximize true flatbed platform advantages.
We are pleased to add the new capabilities of flatbed printers to the large format graphics field.
The highest resolution of 1,200dpi and the variable dot technology (7 different dot sizes) realize near photographic image quality.
Even 4-color mode realizes a non-grainy print. With a minimum dot size of 6pl.,sharp edges of small texts and smoth skin tones can be created.

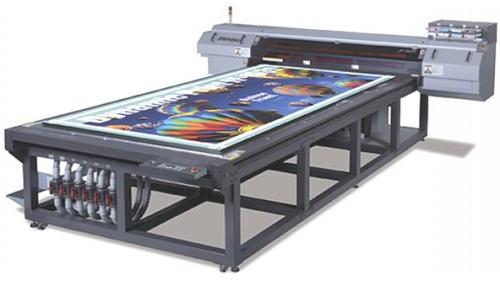

mimaki jf-1631 flatbed uv-curable inkjet printer
technical specs & details
model jf-1631
head piezo-electric drop on-demand
resolution
600 x 600dpi, 1200 x 1200dpi
ink exclusive uv curable ink (7 colors: yellow. Magenta, cyan .black, light magenta,. Light cyan, white)+clear
ink volume
400cc cartridge
4-color print mode: 440cc x 2 cartridges color,
8-color mode: 440cc x 1 cartridge color
effective printing area 1,602 x 3,100mm
(63.0" x 122.0")
perpendicularity ±0.5mm1,000mm
media size 1,694 x 3,194mm
(66.6" x 125.7")
thickness less than 50mm (1.96")
weight less than 200kg (441lbs)
media set device air suction by blower
uv device equipped with 2 sets of uv lamp
interface usb2.0
applicable standard vcci class a, ce marking,
cb report,ul, rohs directive
power specifications ac200~240v±10%, 5060hz±1hz, less than 30a
power consumption less than 6.0kva
operational
environment temperature
15°c~30°c (59°f~86°f)
humidity
35%~65% rh
accuracy guarantee
temperature 18°c~25°c (64°f~77°f)
temperature gradient less than ±10°ch (18°f)
dust equivalent to normal office level
weight less than 1,150kg (2,533lbs.)
dimensions
(w x d x h) 3,380 x 4,230 x 1,350mm (133.1" x 166.6" x 53.2").
