priceâ â â : usd 1,300.00
min order: 1 - 5 pcs
lead time: 6 - 9 days
portâ â â â : cif / kualanamu international airport
termsâ â â : t / t, western union, wise, xoom
products : ori and ready in stock
emailâ â â : order@indoelectronic.com
buying mimaki ts500-1800 gen5 printhead from indoelectornic is 100% safe, because the purchase of productsat indoelectronic provides
official genuine products and 100% money back guarantee.
to purchase online visit us: www.indoelectronic.com
indoelectornic sells : printer, printhead, camera, camcorder, drone, medical electronic
â

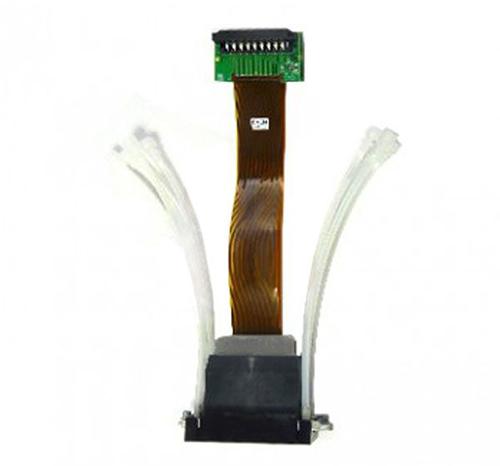

mimaki ts500-1800 gen5 printhead assy type-d - m014140
this printhead is suitable for mimaki ts500-1800 & tx500-1800 series printers.
printer compatibility:â mimaki ts500-1800 / tx500-1800b / tx500-1800ds
part no.: m014140
remarks: original
â
specifications:
â
model | prh-mim-006 |
| head materials | â sst, nickel alloy, epoxy adhesive |
| number of nozzles | â four 320 nozzles |
| nozzle spacing | â 0.1693 mm |
| nozzle density | â up to 600 npi |
| nozzle plate surface | â coated sst |
| piezo type | â d33 stacked pzt |
| native drop volume | â 7 pl |
| drop volume range | â 7 - 35 pl |
| drop velocity | â 7 m/s |
| jetting frequency | â up to 60 khz |
| temperature control | â integrated heater and thermistor |
| operator temperature range | â up to 80â° c |
| life | â 100 billion actuations per nozzle |
| dimensions | â 89 x 25 x 69 mm (not include cables) |
