Contact SupplierWe offer Mine pneumatic gear submersible pump.

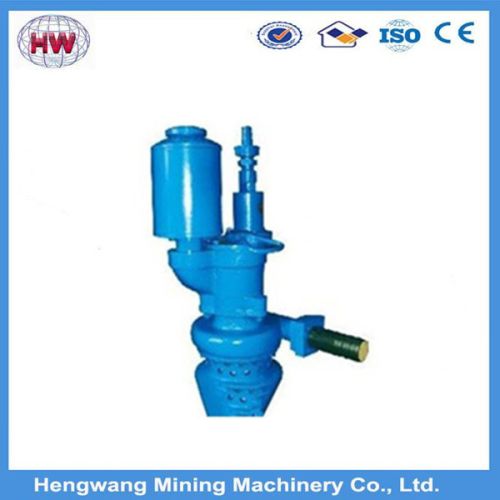

FQW20-70CK mine pneumatic gear submersible pump, it is our company newly developed a new generation gear pump. A pair work gear regarded as power generating plant consists. Adopt compressed air to drive meshing gear rotation, Power output by the drive shaft, driving wheel work.
Machine has simple structure, easy moving and installation, convenient maintenance . With advantages of high efficiency, good performance, low consumption volume, etc.
Model Rated flowQ Rated head
H Rated wind pressure P Rated air consumption Q Noise Max particles Water hose diameter Gas hose diameter Weight Boundary dimension mm
m³h m MPa m³h dB mm mm mm kg L*W*H
FQW20-70CK 20 70 0.55 290 80 8 38(1.5inch) 25(1inch) 30 310×280×690
FQW15-85CK 15 85 0.55 290 85 8 38(1.5inch) 25(1inch) 30 310×280×690
