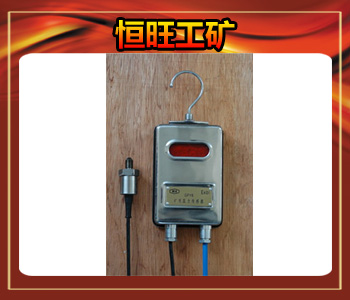

Mine Pressure Sensor

We are offering gpy6 mine pressure sensors, pressure sensors, used in pipelines gpd200 pressure sensor, gpd10 pressure sensor,
scope of application and characteristics
gpy6 mine pressure sensors can continuous monitor mine gas drainage pipeline pressure, etc. It can be point pressure value, real-time display and can be compatible with other domestic coal mine monitoring system is used.
Product standards: apply to mt393-1995 mine differential pressure sensor general technical condition.
Main technical parameters
explosion-proof type: mine intrinsically safe type
explosion-proof marks; : exibi
working voltage: 12 ~ 18v dc
working current: 50 ma or less
measuring range: 0 ~ 6 mpa (users can specify separately)
overload capacity: 150% maximum measured values
frequency: 200 ~ 1000 hz
current: 1 ~ 5 ma, 4 ~ 20 ma
