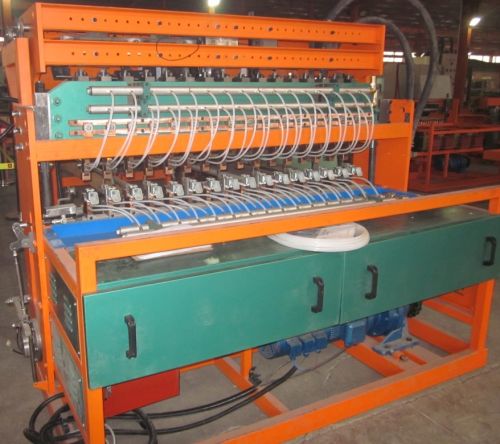

Mine Timbering Mesh Welding Machine

We are offering mine timbering mesh welding machine.
function features:
1. It adopts synchronous control technology. The welding time and free running welding are controlled by plc numerical programmable system.
2. The input panel falls into two types, touch screen or keyboard, which makes the opearation more reasonable and more intelligentizing.
3. The welding is drived by pneumatic system, which makes the adusting of the welding pressure simple and convinent.
4.the transversal wire feeding system is with hopper type drived by step motor. Both the mesh pulling system and longitudinal wire feeding system are controlled by step motor.
5.it is special for mine timbering mesh and the mesh opening size can be adjustable within certain scope.
main parameters:
wire diameter 4-8mm rated voltage 380v
mesh opening 100*100-150*150mm rated power 441kva
mesh width 1300mm mesh length 1300-2600mm
longitudinal wire number 14 machine weight
welding speed 40strokes/min overall dimension 7280*4110*1945mm
application:
mainly used in mine support and widely used in coal, metallurgy,construction warehousing,chemical industry etc.
