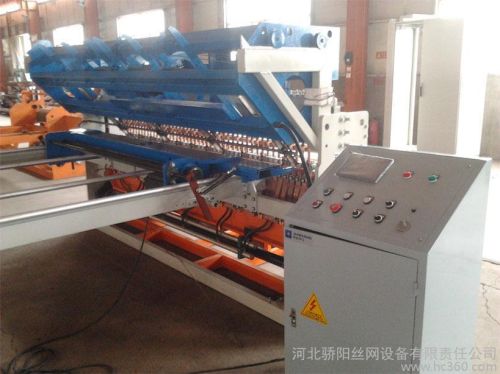

Mine Timbering Mesh Welding Machine, Certification : ISO9001:2008CE

We are offering mine timbering mesh welding machine.
main performance & parameters
1.the mine timbering mesh welding machine adopts our company patent threading device, more convenient for manually threading wires, saving time and effort;
2.adopts bottom electrode and threading device connected structure.
3. The adjusting of line wire distance is more convenient and efficient, and the top electrode and bottom electrode adopts circulating water cooling treatment.
4. The water cooling transformer is produced by domestic professional manufacturer .
5.and it adopts program which can adjust the current and welding time. It's easier and more convenient to operate.
6. It adopts plc which can control step motor pulling mesh device .and the pulling mesh size is more accurate .
7.the cross wire spare is set though plc and touch screen. The operator interface is more humane.
the main parameter
gwc-1200(3-8)
wire diameter 3-8mm line wire form pre-cut wire
line wire distance 50-200 cross wire form pre- cut wire
cross wiree distance 50-200 rated voltage 380v 50hz
wire mesh width 1200mm rated capacity 125*3
welding speed 60timesmin
dimension 3100*40000*3000mm
electrode number 12 or 24
wire mesh length 6000mm
gwc-2500(3-8)
wire diameter 3-8mm line wire form pre-cut wire
line wire distance 50-200
cross wire form pre- cut wire cross wiree distance 50-200 rated voltage 380v 50hz
wire mesh width 2500mm rated capacity 125*6
welding speed 60timesmin
dimension 3100*40000*3000mm
electrode number 24 or 48
wire mesh length 6000mm
