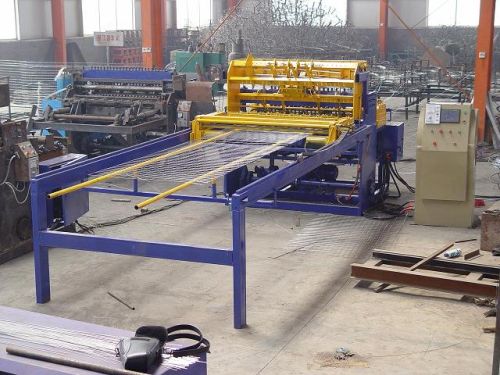

Mine Timbering Mesh Welding Machine

function features:
it adopts synchronous control technology. the welding time and free running welding are controlled by plc numerical programmable system. the input panel falls into two types, touch screen or keyboard, which makes the opearation more reasonable and more intelligentizing. the welding is drived by pneumatic system, which makes the adusting of the welding pressure simple and convinent. the transversal wire feeding system is with hopper type drived by step motor. both the mesh pulling system and longitudinal wire feeding system are controlled by step motor. it is special for mine timbering mesh and the mesh opening size can be adjustable within certain scope.
main parameters:
wire diameter
6-8mm
rated voltage
380v
mesh opening
100*100-150*150mm
rated power
441kva
mesh width
1300mm
mesh length
1300-2600mm
longitudinal wire number
14
machine weight
welding speed
40strokes/min
overall dimension
7280*4110*1945mm
