Mineral Belt Conveyor Guide Idlers Spare Parts

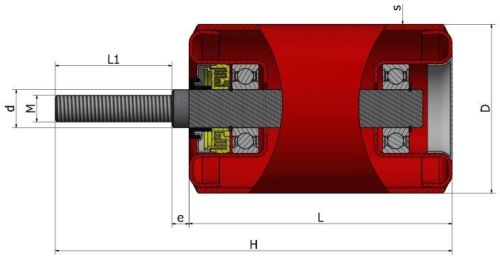

Belt side guide idlers are also called track-guiding idlers, stub idlers, snub idlers, limiting idlers or lateral guide idlers. They are contact with the edge of the idler roller belt and designed to prevent belts from tracking off.  they consist of shell, shaft, bearing, bearing house, seals and axial clip etc. And the most important component is bearing, all of our products are made of chrome steel gcr15, reinforced cage and thick rings, good anti sticking performance in dusty environment. Size: description 89mm bulk material belt conveyor side guide idler type training, aligning, side, vertical, guide pipe / tube 1) material : q235 carbon steel equal to din s235jr 2) diameter : 89 mm  3) length:  150mm ~ 600 mm 4) thickness : 1.0 ~4.5 mm 5) with steel end caps type conveyor dtii dtii(a) td75 shaft / axis 1) material : a3 / 45# steel equal to din c45 2) diameter:  20 mm bearing 1) type : deep groove ball bearing with c3/c4 2) size: 6204  3) brand: hrb lyc zwz skf xkte 4) stamped bearing and stamped bearing housing seals 1) multiple labyrinth water proof dust proof 2) type: dtii / tr made of nylon, methanal 3) grease : lithium grease lubricant welding automatic double end weld bearing housing surface electric static spraying painting color red, blue, yellow or as require certificate iso9001    ma  application used in coal mine, cement plant.
