Mini 1x4 OPTICAL SWITCH

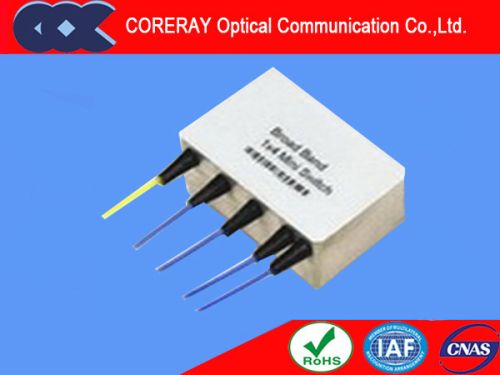

Mini 1×4 Optical Switch
professional supplier of fiber optical component
◇Feature:
Unmatched Low Cost
Low Insertion Loss
High Channel Isolation
Highly Stable and Reliable Epoxy-Free Optical path
Latching or Non-Latching
◇ Application:
Optical Network ProtectionRestoration
Optical Signal Routing
Configurable Optical AddDrop
Transmitter and Receiver Protection
Network Test Systems
Instrumentation
◇ Performance
Parameter Specification
Operating Wavelength (nm) 850&1310±40 1260~1650
Insertion Loss (dB) ≤1.0 ≤1.0
WDL (dB) ≤0.25 ≤0.30
PDL (dB) ≤0.1
Channel Cross Talk (dB) ≥40 ≥55
Repeatability (dB) ±0.02
Return loss (dB) ≥35 ≥55
Switching Speed (ms) ≤10
Drive Voltage (V) 5
Power Handing (mW) 500
Durability (Cycles) 10 Million
Switching Type Latching or Non-latching
Operating Temperature (℃) -5～70
Storage Temperature (℃) -40～85
Fiber Type SMF-28
Fiber Length (m) Customer Specify
Dimension (L×W×H) (mm) 35×23×10.
