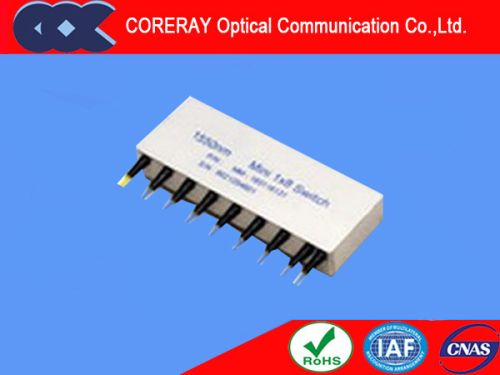

Contact SupplierMini 1×8 optical switch
professional supplier of fiber optical component
◇feature:
unmatched low cost
low insertion loss
high channel isolation
highly stable and reliable epoxy-free optical path
latching or non-latching
◇ application:
optical network protectionrestoration
optical signal routing
configurable optical adddrop
transmitter and receiver protection
network test systems
instrumentation
◇ performance
parameter specification
operating wavelength (nm) 850&1310±40 1260~1650
insertion loss (db) ≤1.0 ≤1.2
wdl (db) ≤0.25 ≤0.30
pdl (db) ≤0.1
channel cross talk (db) ≥40 ≥55
repeatability (db) ±0.02
return loss (db) ≥35 ≥55
switching speed (ms) ≤10
drive voltage (v) 5
power handing (mw) 500
durability (cycles) 10 million
operating temperature (℃) 0~70
storage temperature (℃) -40~85
fiber type smf-28
fiber length (m) customer specify
dimension (l×w×h) (mm) 36×33×11.5.
