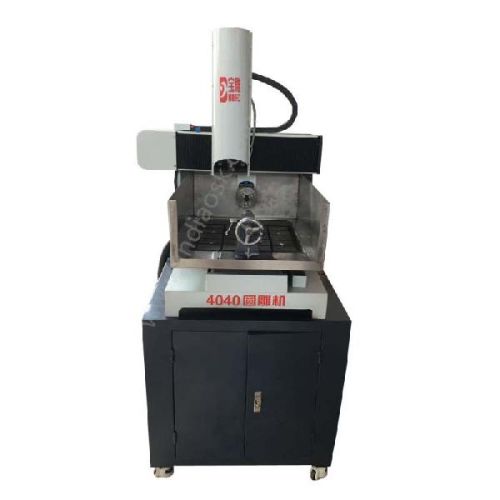

Mini 3D4 Axis CNC Router Machine, Certification : ce

4040 mini 3d stone carving machine
performance features:
1. Imported precision ball screw, high precision dividing head, big diameter clamping, can be adapted to different sizes of cylindrical material.
2. National patent box-type column.
3. High-precision drive systems.
4. With power off memory function, power outages continued carving and other user-friendly features to ensure the processing in good order.
5. Advanced cnc system, simple in operation and maintenance easily. Optional cnc dividing heads, carving in the back surface, all user-friendly design can meet the diverse needs of customers.
6. Good compatibility. It is compatible with any advanced cadcam software, such as type3 artcam caxa ug pro-e mastercam jd wentai, etc.
Technical parameters:
model
zs-models
processing length
varies from different model
chuck spec.
≤130mm
max motion speed
15mmin
max working speed
10mmin
spindle power
800w~2.2k frequency water-cooling spindle
spindle rotational speed
6000 ~ 24000 rpmmin
working voltage
ac220v50hz
engraving tool
￠3.17546mm
dictate format
g-code hpgl
positioning accuracy
±0.03mm
repeatability
±0.02mm
controller
nc studio
applicable scope:
widely used for jade carving, stone decoration industry, stone processing industry equipment, musical instruments manufacturing, mold making, stone figure statue, building models, advertising, stone crafts, and so on.
