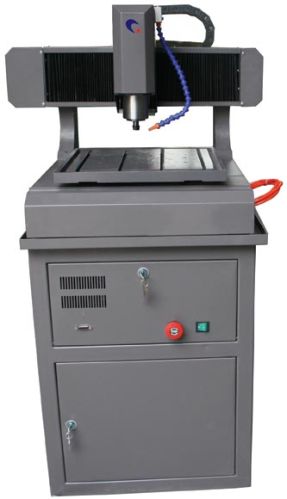

Mini Advertising Engraving Machine

CNC Advertising Engraving Machine
Applications:
jade, jade, copper, aluminum, iron and other soft metal materials, building models, identify industry, schools, enterprises and institutions
Features:
1ï¼? The cnc router adopts the mode of saving intermittence
2ï¼? Memory to ensure the processing point when the blade is broken or postpone situation
3ï¼? Specific saving mode of different points
4ï¼? X axis adopts popular dust-proof structure to make machine work for a long time
5ï¼? The large power cutting spindle does not only increase the fineness of engraving the breast card without screw and the under base is more flat and smooth. The machine is suitable for the architecture mould sign industry, school, enterprise, government to use
6ï¼? The super star cnc router can be widely used for architectural model, schools, companies and government
Technical parameter:
Model cx-3030 cx-6060
X Y working area 300*300mm 600*600mm
Z working area Max 80mm Max 80mm
Table size 420*550mm 600*600mm
Max. rapid travel rate 5-6m/min 5-6m/min
Max. working speed 2-3m/min 2-3m/min
Max. feeding height 80mm 80mm
Repositioning positioning accuracy 0.05mm 0.05mm
Command language G-code, ugg,mmg,plt G-code, ugg,mmg,plt
Max. power consumption(without spindle) 300w 300w
Working voltage AC220V/50HZ AC220V/50HZ
Spindle power motor 1.5KW 1.5KW
Spindle speed 0-24000rpm/min 0-24000rpm/min
Drive system stepper stepper
