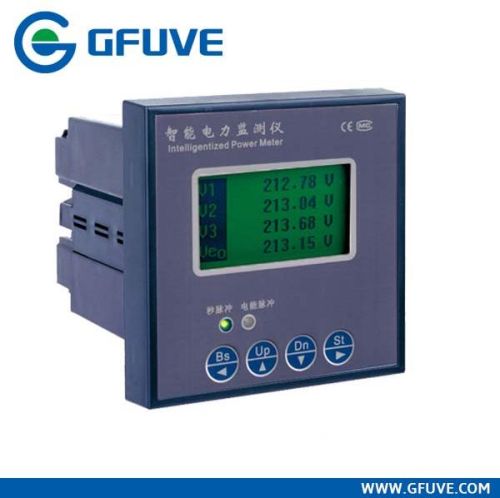

Mini Analog Digital Panel Meter, Operating Temperature : -25 - 55 °C

We are offering mini analog digital panel meter. introduction fu2200 is a multifunction power analyzer, it can measure all the electric parameters in the circuit, and it has rtc, calendar and one pulse output. Measurement parameters voltage (ph-n); voltage (ph-ph); current; frequency; pf; active power (w); reactive power (q); apparent power(s) computation forward active power energy reverse active power energy forward active power energy reverse reactive power energy measuring range 30~600v, 0~6a, 45~65hz, -1~0~1 display lcd display, 128â´64 lattice, english and chinese interface, 4 displays. Green back-lit 4 operation keys. Communication rs-485 interface port support, 32(128) networking, modbus-rtu communication protocol. Energy pulse (optional) one active energy pulse output pulse constant: 5000kwh photocoupler output (0.1a*30v). Rtc accuracy drift less than 2.5minyear connection mode 3p4w, 3p4w bal, 3p3w, 3p3w bal, 1p2w, 1p3w. Programmable measuring system : 3p4w3p3w etc. Transformation ratio : pt,ct. Communication: address: 1~247; baud: 1200~19200; parity bit: neo rtc: year; month; day; hour; minute; second energy: reset dimension mounting panel:120 x 120mm thickness:21mm depth:118mm mounting panel mounting trepanning: 92 x 92mm power supply (acdc) ac85~265v dc85~330v, dc18~90v (optional) power consumption:
