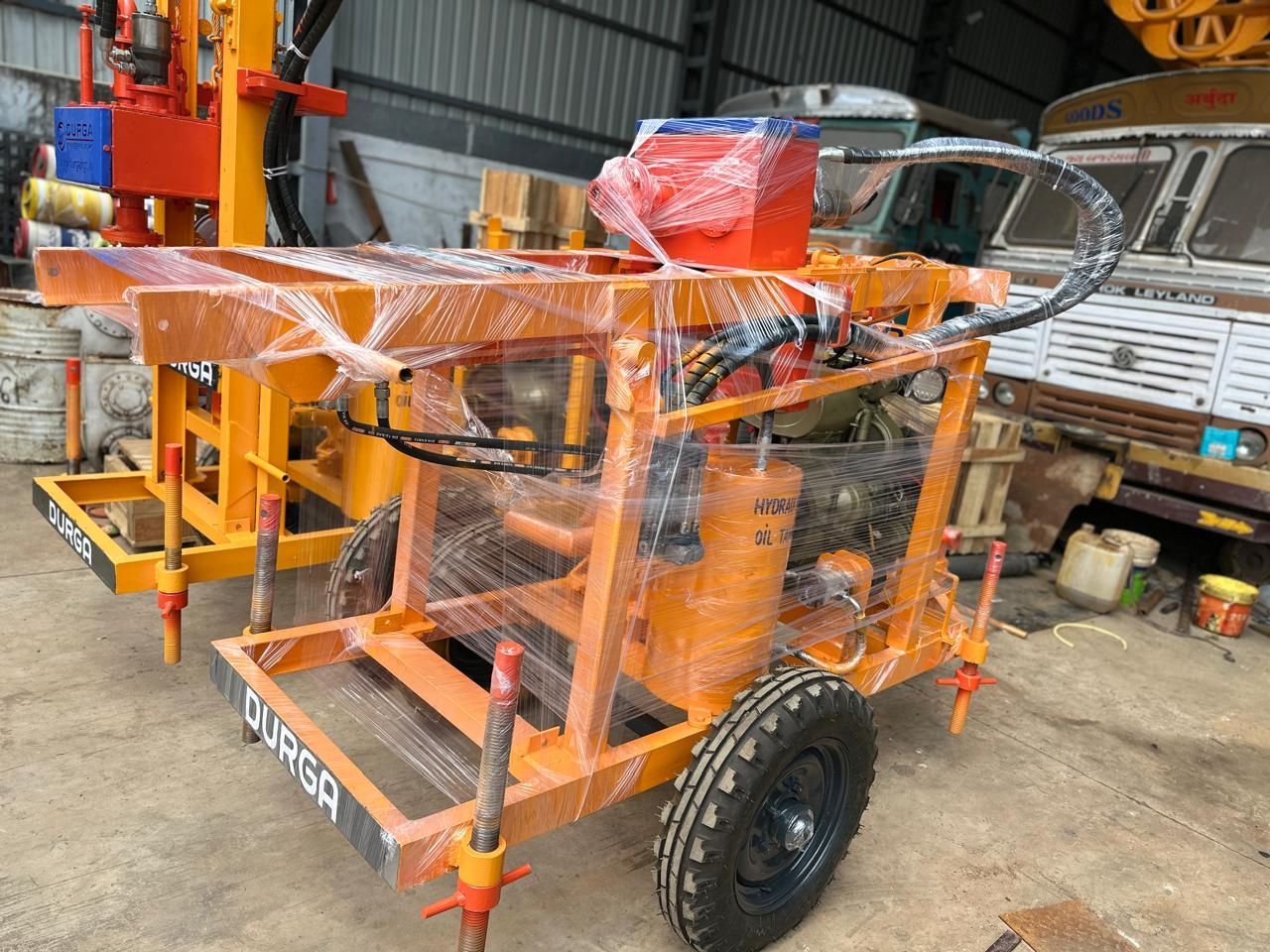

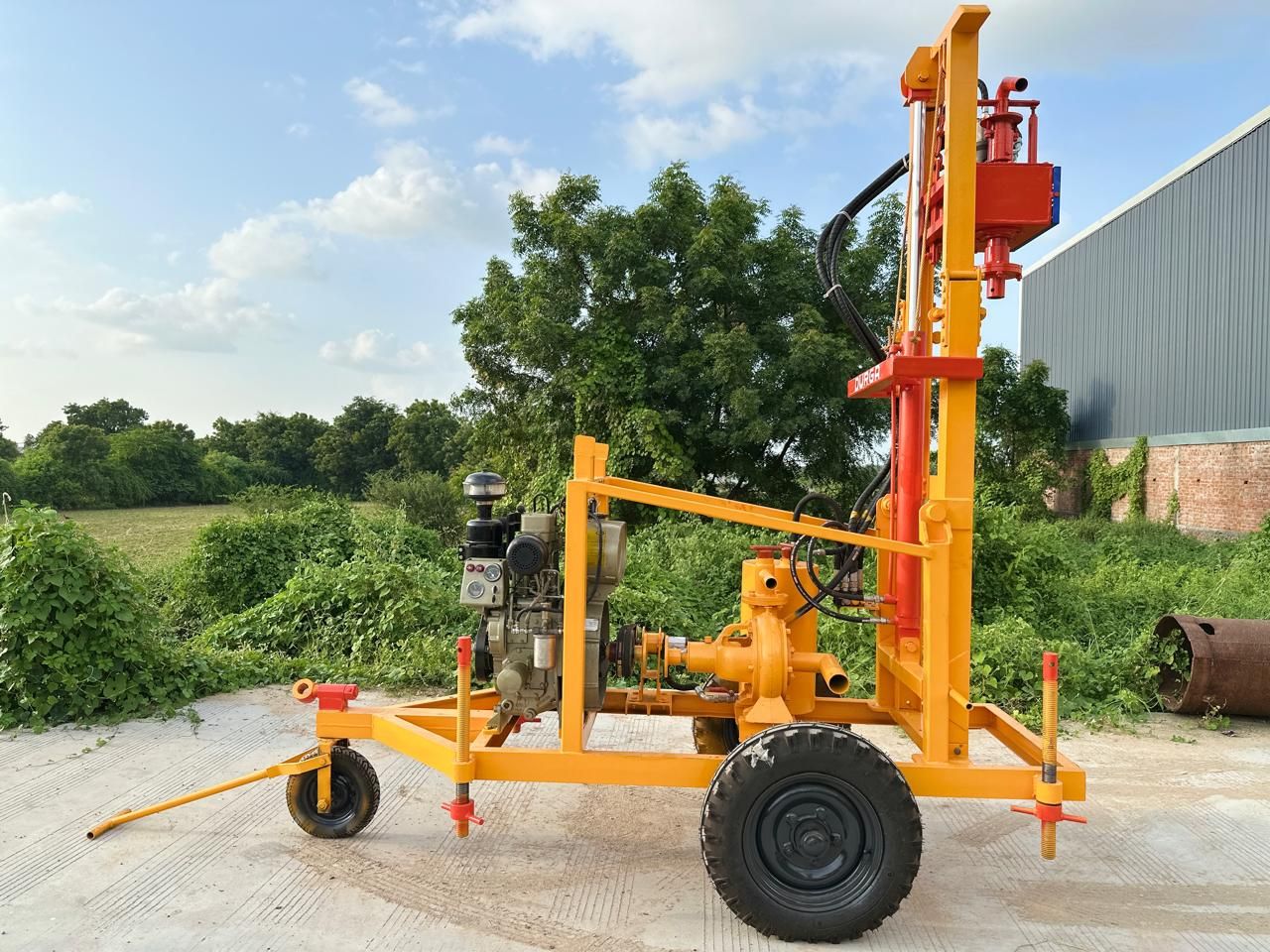

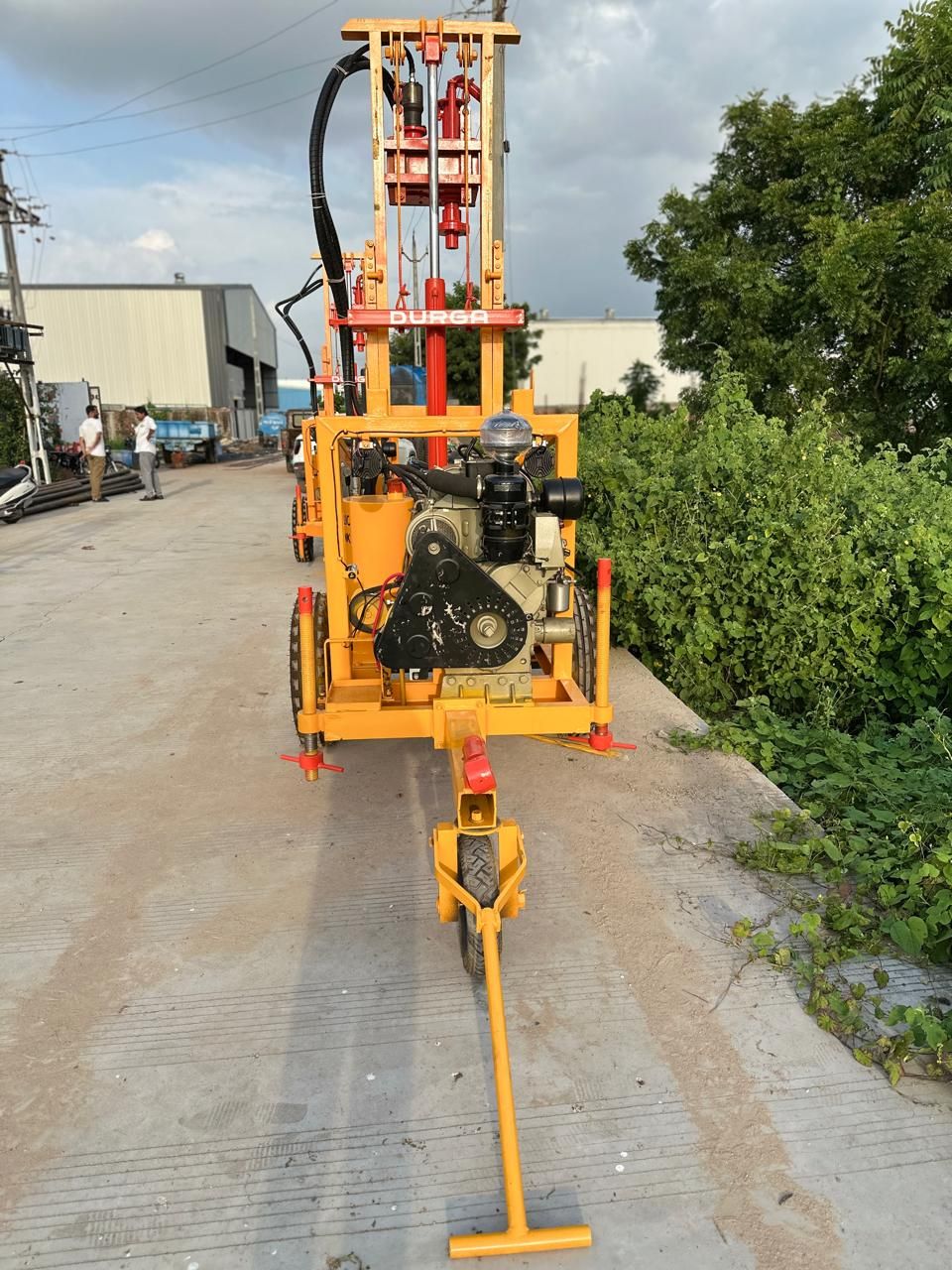

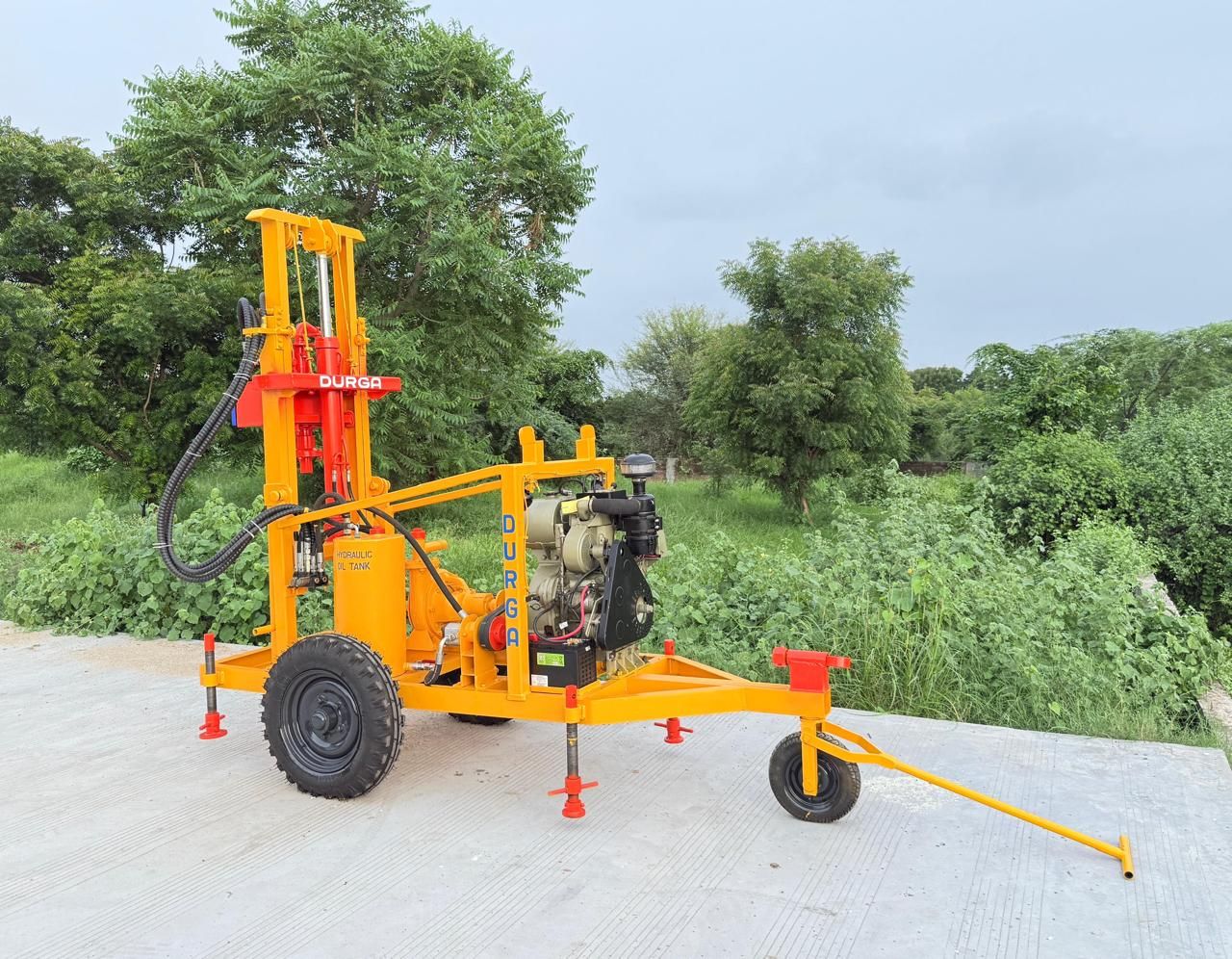

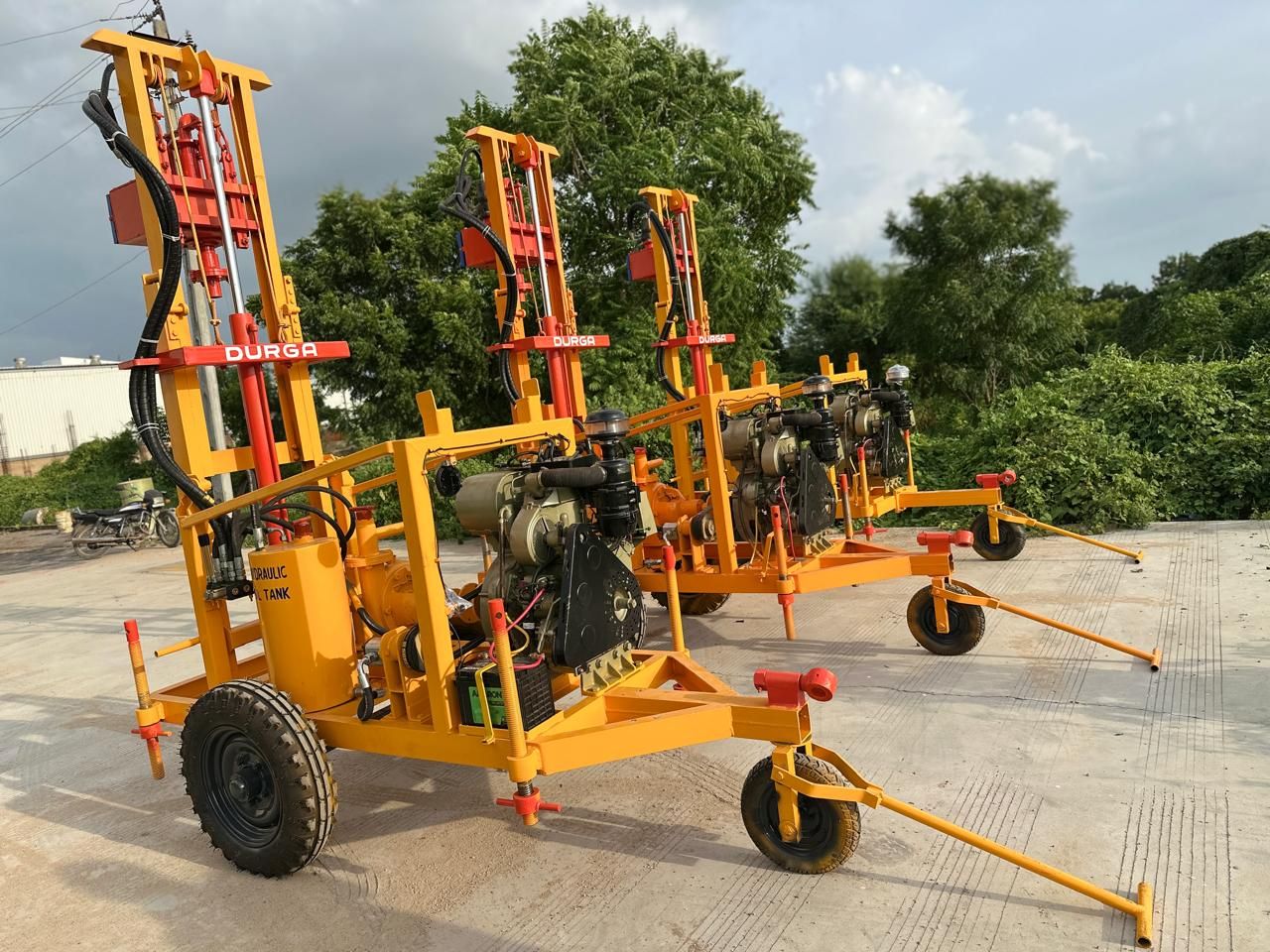

Technical Specification-Portable Hydraulic Auger Drill Machine (Water Well)
Parameter---------------------------------------Specifications
Drilling Depth-----------------------------------50 to 100 meters(depends on soil type length)
Drilling Diameter-------------------------------100 MM to 300 MM
Power Source-----------------------------------Diesel Engine (14-40 HP)
Hydraulic pump flow---------------------------100 LPM
Rotary Rotation Speed--------------------------1500 RPM (Adjustable)

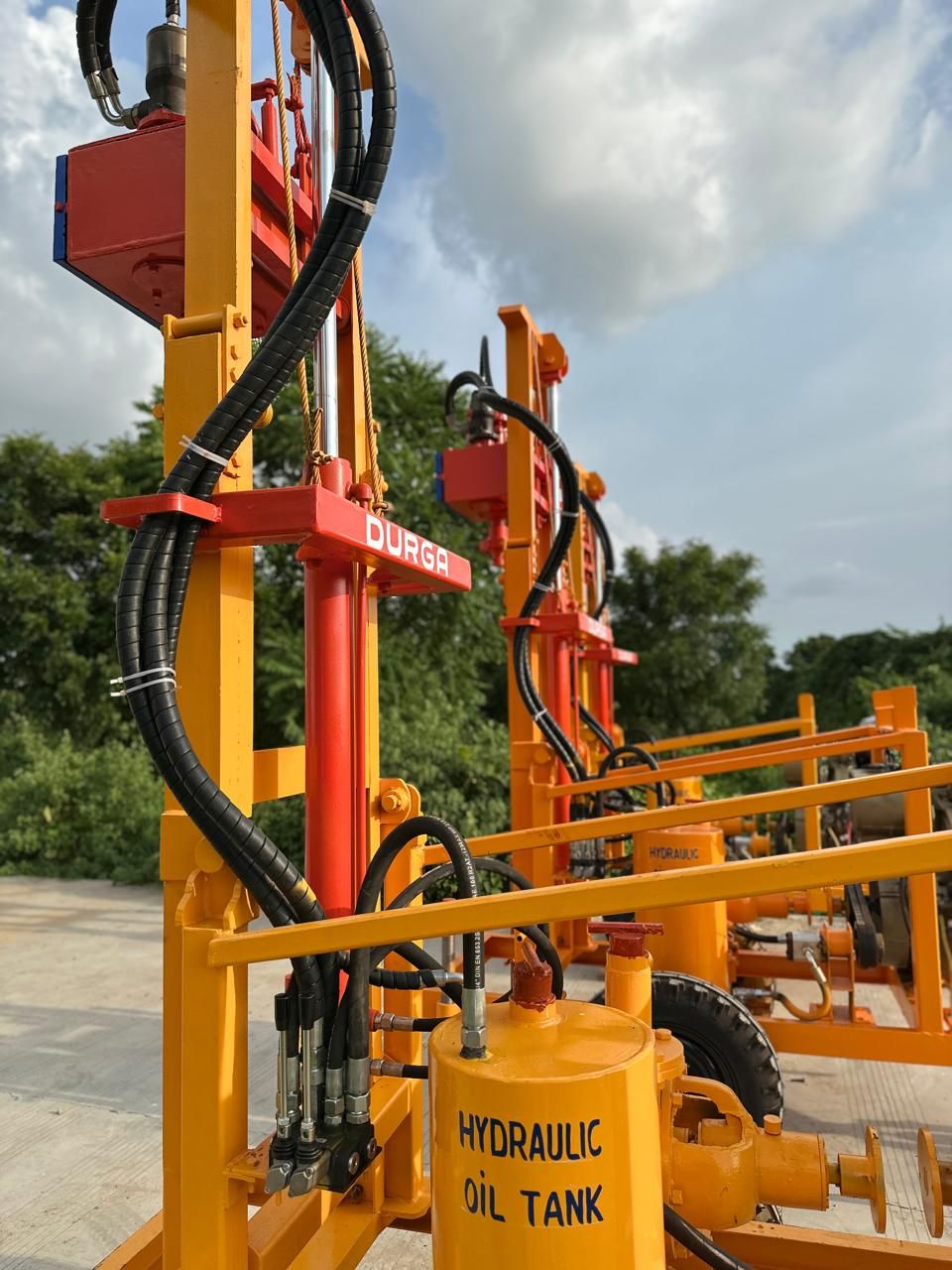

Hydraulic oil tank-------------------------------35-50 litter
pull up force------------------------------------1-3 ton ( via Hydraulic cylinder)
Machine Weight---------------------------------600-1200 Kgs
Chassis Type------------------------------------ Two wheel trailor-mouted,towable
Control-------------------------------------------hydraulic lever controls
Mobility------------------------------------------Jeep towable/Hand Move/tractor Move etc..
optional Features------------------------------- Centrifugal pump,water injection,core barrel,rock auger bits.
