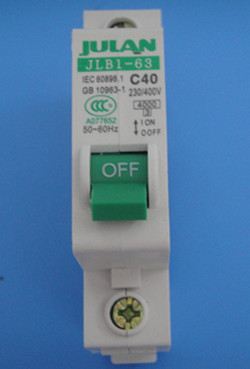

Contact SupplierWe offer mini circuit breaker.
Standard: IEC60898
Rated current In (A): 0.5, 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63
Rated voltage Ue (V): 230/400
Poles: 1P, 2P, 3P,4P
Rated insulation voltage Ui (V): 500
Rated impulse withstand voltage (V): 6000
Rated breaking capacity: 6KA
Rated frequency: 50Hz/60Hz
Trip characteristic:B, C, D
Mechanical life: 20 000
Electrical life: 6000
Mount: On 35mm DIN rail
The Gross weight 27kg/carton
The dimension 44.5*24.5*36.5 cm
M.O.Q 500pcs (Samples Excepted)
Payment term T/T, L/C,D/P,O.A
Delivery time Usually 25 days (Negotiable for different order quantity)
Promote the products with our own brand (As one of our agents in your market)
Promote the products with neutral packing
Do OEM for you
