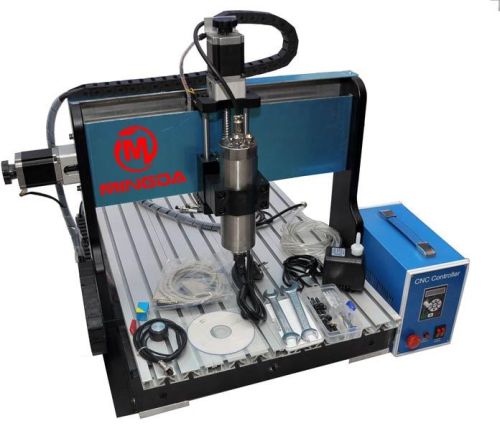

Mini CNC Jewelry Engraving Machine

We are offering mini cnc jewelry engraving machine.
model cnc6040
dimension 900×690×520mm
work area 840*480mm
x,y,z axis working travel 400x600x60mm
the max thickness of carved objects 90mm
rack material 6061aluminum alloy
transmission unit x ,y,z axis is 1605 t screw
water-cooled spindle
frequency converter ac220v,1.5kw,0~400hz(inside cnc controller)
spindle power 200wac220, scm stepless speed regulation
speed (rpm) 0-8000
clamping diameter 3.175mm
cooling way water cooled
feeding speed max(mmmin) 3000
carving speed(mmmin) 50~3000
carving accuracy 0.03mm
repositioning accuracy
(mm) 0.03mm
input voltage 220v or 110v
instruction format g code (tap, nc, ncc, text)
compatible software mach3type3artcamcadcam etc.
