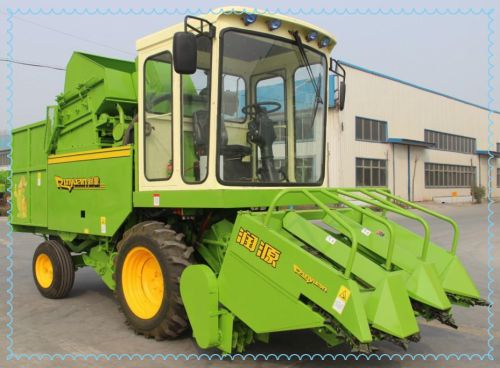

Contact SupplierWe offer Mini Corn Combine Harvesters
Item Unit specification
Model 4YZ-3C
Function Self-propelled
Match power Engine model Y4105ZG
Rated power Kw 75Kw
Rated speed rmin 2400
Dimension mm 5750*2100*3000
Weight kg 4350kg
Harvesting Rows 3
Adopt Row Spacing mm No limits
Working width mm 1800
Max.Unloading height mm 1940
Min.Ground clearance mm 220
Min.radius of curve Turn left mm 4450
Turn right mm 4750
Working speed Kmh 1.84-4.42
Productivity Hm2h 0.2-0.67
Fuel oil consumption Kghm2 9~12
Snapping roller model Longitudinal horizontal
Gearbox type Mechanical
wheelbase Guide wheel mm 1200-1400
Driving wheel 1320
Tyre spec Guide wheel 10~15
Driving wheel 11.2-24.
