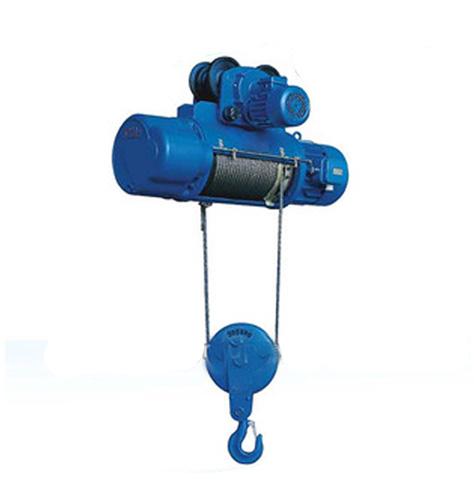

Mini Electric Wire Rope Hoist

We are offering 2.mini electric wire rope hoist (chinacoal08)
chinacoal mini electric wire rope hoist  :  as a new type of electric hoist is widely used in machinery, electronics, automobile, shipbuilding, workpiece assembly and high and new technology industrial park is one of the modern industrial production line, assembly line, assembly machine, logistics delivery and so on. In the warehouse, dock, ingredients, hanging basket and the space is narrow work site operation, more can show its good quality. Is the column type, wall crane arm of the best matching products. Miniature electric hoist beautiful shape, reasonable structure, easy installation, the noise is small, the use of safe and reliable, so tiny electric hoist is widely used in factories, workshops, family, warehouse, hotel, shopping mall, decorate and handling, etc .
Main para
model      no.  t d 0.5 t d 1
rated load   t 0.5 1.0
trial load   t 0.6 1.2
lifting height   m 3 3
running speed    mmin 16.4 16.4

motor model do25034 do26324
  power w 60 200
  speedrmin 1400 1400
  voltage ac 220v, 50hz ac 220v, 50hz
min.radius of curve  m 1 1
recommend
i-beam model 10-22 10-22
   track width mm 68-110 68-110
  n  w         kg 8 19
