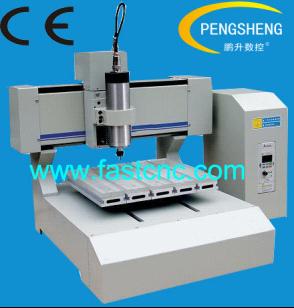

Mini Engraving Machine

₹ 2.73 Lakh / 100000 100000 Piece

MOQ1 Piece(s)
X,Y,Z structureImported ball screw
Z working area 60mm
Table size 500mm*500mm
Work-holding By clamp
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 13 Years
Nature of Business Supplier
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Operating system NC Studio
Table size 500mm*500mm
Command G code*.u00*.mmg*plt
Spindle rotating speed 0-24000r/min
Drive Motor Stepper
Resolution 0.01mm
Work-holding By clamp
Working voltage AC220V/50/60 Hz ,2PH
Diameter of cutter 3.175-8
Max speed9m/min
Spindle power 1.5KW
Cooling mode Water cooling
X,Y,Z structureImported ball screw
X.Y working area300mm*300mm
Z working area 60mm

We are offering mini engraving machine with good quality
1.whole cast by aluminum.
2.adopt 1.5kw china domestic made water cooling spindle.
3.three axes adopt imported ball screw and circle orbit,stable working,high precision and long life time.
4.x axis is dustproof.it makes sure the steady working performance of the machine for long-term using.
5.well compatibility:cad/cam designing software e.g.
type3/artcam/castmate/ucancam etc.
6.it has the function of forecasting process time.
7.the most advantage of the machine is the gantry is fixed,but the working table can move,it can be ensure the high accuracy.
