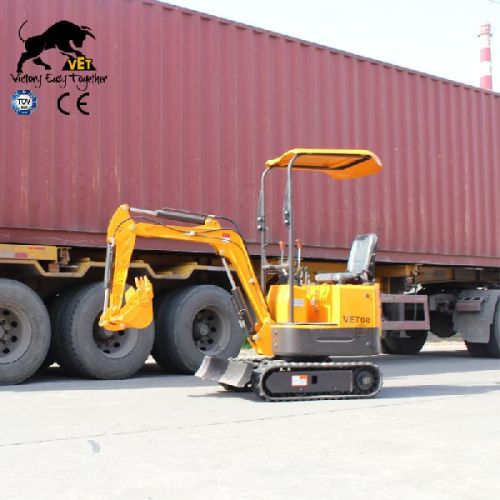

Mini Excavator VER08

Model

VET08

Operating Weight

900kg

Digging bucket capacity

0.025cbm/100kg

Bucket width

340mm

Engine

CHANGCHAI (192FAM)

Rated power

8.6 kw/3600r/min

Displacement

0.211 L

Bore stroke

70x55

Main pump

CBK-F6.8

Displacement

6.8ml/r

Swing motor

SJ-TECH (MP-1-160)

Traveling motor

KERSEN (OMS-2450)

Travel speed

1.5km/h

MAIN DEMENSIONS

Overall dimension( LxWxH)

2770x896x1490 mm

Wheelbase

910 mm

Total length of track

1230mm

Platform ground clearance

380 mm

Platform back turning radius

784 mm

Chassis width

896 mm

Track width

180 mm

Chassis ground clearance

132 mm

Track height

320 mm

OPERATING RANGE

Max. Digging depth

1650 mm

Max. Vertical digging depth

1375 mm

Max. Digging height

2610 mm

Max. Dumping height

1850 mm

Max. Digging radius on ground

2850 mm

Min. Rotation radius

1330 mm

Max. Upgrade height of bulldozer blade

345 mm

Max. Digging depth of bulldozer blade

255 mm
