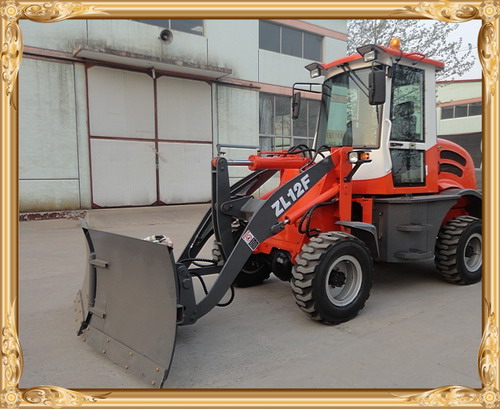

Mini Front Loader

We are offering mini front loader.
12f:
rated load: 1200kg
total weight:3360kg
dim.: 5040*1680*2600 mm
engine: 37kw diesel engine
automatic transmission
pls contact ms.lisa liu: loadercnat126dotcom.
applications:
ce certified wheel loader zl12f is mainly used in road construction, urban construction, environment cleaning, coal yard, sand and stone quarry, small and medium civil engineering, railway station, wharf, freight yards, warehouse, etc. To shovel and load or move earth, sand and stone, coal cinder, trash and other bulk materials. This 1.2t ce marked wheel loader can be used together with 3-5 tons tractor and truck to load and unload materials and also can be used to carry out the works such as bulldozing, shoveling and digging, dragging, stacking, lifting and traction, etc.
main technical parameters:
1 .rated load: 1200 kg
2. Total weight: 3360 kg
3. Rated bucket capacity: 0.6 cbm
4. Max. Tractive force: 30 kn
5. Max. Breakout force: ≥ 32 kn
6. Max. Gradeability: 38°
7. Max. Dumping height : 2800 mm
8. Max. Dumping reach: 1000 mm
9. Raising time: ≤ 5.0 s
10. Total cycle time: ≤ 9.5 s
11. Overall dimensions (l x w x h): 5040*1680*2600 mm
12. Min. Turning radius: 3200 mm
13. Engine model: changchai 4l68
14. Engine type: four-cylinder, inline, water-cooled, four-stroke diesel engine
15. Engine rated power: 37 kw
16. Engine rated speed: 2200 rpm
17. Engine min. Fuel consumption ratio: ≤ 230 gkw•h
18. Transmission system: zl240 integrated hydraulic torque converter
19. Gear shift: 1 forward, 1 reverse, 1 high speed, 1 low speed
20. Max. Speed: 25 kmh
21. Model of drive axle: 50 drive axle
22 . Wheel tread: 1400 mm
23. Wheel base: 2150 mm
24. Drive mode: 4-wheel drive
25. Hydraulic system working pressure: 16 pa
26. Fuel tank capacity: 75 l
27. Service brake: foot pedal single-line, hydraulic, expansion-shoe brake on 4 wheels
28. Parking brake: hand lever flexible shaft controlled disc brake
29. Tire type specification: 12-16.5-12pr
30. Front tire pressure: 0.40 mpa
31. Rear tire pressure: 0.35 mpa
