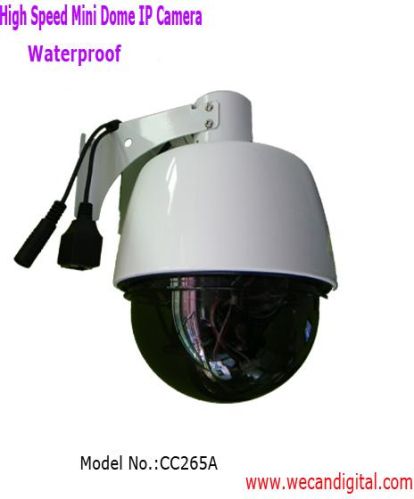

Contact SupplierWe manufacture waterproof ip camera.
Operating system:embedded os
cpu:32bit rsic embedded processor
image sensor:sony 18x color,sony 18x d/n
horizontal resolution:480tvl
min. Illumination:0.7lux color,0.001 lux b&w
s/n ratio:>48db
focus:optic 18x,digital 10x
electronic shutter:1/50~1/100,000s
white blance :auto
image compression:mpeg-4 / mjpeg
max. Frame rate:30fps
image resolution:d1(720*576),cif(352*288),qcif(176*144)
image setting:brightness, saturation, contrast hve could be adjust
audio:built-in mic. Two-way audio in lan
audio gain:auto(agc)
communication:rs485 control
rotational angle:pan range: 0~360 degree tilt range:0~90 degree
rotational speed:pan speed: 0â°~200â°/s tilt speed:0â°~200â°/s
network interface:rj-45 10/100mbps
delay time :500msec@lan
support multi protocol:tcp/ip http, igmp, dhcp, ftp, pppoe, ntp etc.
Wireless technology:wif802.11b/g
rtsp:live video and audio via 3g mobile phone(support windows system, win5.0/6.0/6.5, android 2.0 or above,
software for iphone / ipad )
simultaneous viewers:20
support ip address:satic ip address, dynamic ip address, pppoe
video / snapshot:three options: auto, alarm, motion avi/3gp for video format, jpg for image format
storage:support micro-sd(tf card) , 8g max.
Alarm:motion detection, threshold
detection area:support full screen
alarm sending:support image, video as ftp file
operating system:microsoft win98/se/me/2000/xp, vista, internet explorer5.0
authentication:password/ administrator/ general user
ddns:embedded ddns system, support up to 10 ddns services
exterior material:plastic
work environment:indoor/outdoor
power:dc15v/2.4a
operating temperature:5 to 45 degree
operating humidity:20 to 80% ( non-condensing)
dimensions:î¦145*165mm
weight:790g
