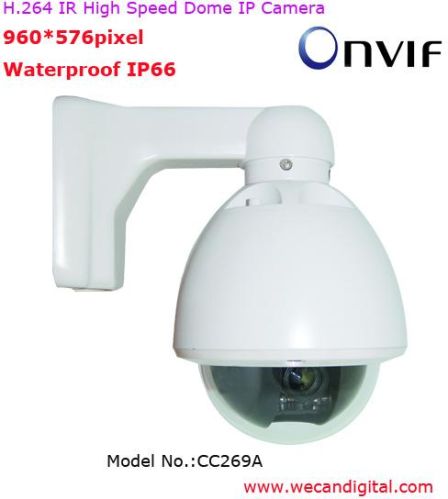

Mini High Speed Dome Network Camera

We are offering mini high speed dome network camera.features:
1. Compatible for axxon,nuuo,ivideon,vlc media player,milestone,avigilon and other client software;
2. High speed ptz ip camera;
3. 1/3" super had ii sony ccd;
4. Optic 12x,digital 12x zoom;
5. Support onvif;
6. Waterproof:ip66;
7. Poe optional.
specifications:
network and video spec:
video compression:h.264 main profile @level 3
processor:hi3507
video resolution:pal:960*576,704*576(4cif),704*288(2cif),352*288(cif),176*144(qcif)
ntsc:960*480,704*480(4cif),704*240(2cif),352*240(cif),176*120(qcif)
video frame rate:pal: 1-25frames/second
ntsc:1-30frames/second
video compression bit rate:16-8000kbps
supported protocols:tcp, udp, ip, http, ftp, smtp, dhcp, dns,arp, icmp, pop3, ntp, ipsec, upnp,rtp,rtsp,ipv4
streaming format:video streaming or audio &video composite streaming
audio compression:g.711
audio input:1 channel
audio output:1 channel
serial port: 1 pc, standard rs485 serial port
title osd:support
alarm input:1channel,optional
alarm output:1 channel,optional
e-mail alarm:support
speed dome spec:
synchronous system: negative sync.,12*12x
pan / tilt range:pan: 360°(endless), tilt: 90°(auto flip)
pan / tilt speed:preset: 360°/sec,swing: 1~50°/sec
manual: 0.05~360°/sec(proportional to zoom)
preset:127 preset ( label, camera image setting )
pattern:4 patterns, 1200 commands ( about 5 minutes)/pattern
swing:8 swing
group:8 groups ( 20 actions entities per group )
other functions:auto flip, auto parking, power up action etc
communication:rs-485
protocol:pelco-d, pelco-p selectable
privacy zone:4 zones
alarm input:4 inputs
osd:menu / ptz information etc
camera spec:
ccd: 1/3" super had ii sony ccd
max. Pixels:811(h)×508(v)410k ntsc
795(h)×596(v) 470k pal
effective pixels:768(h)×494(v) 380k ntsc
752(h)×582(v) 440k pal
horizontal res.:650 tvl(color),700 tvl(b/w)
s/n ratio:50db(agc off)
zoom:12x optical zoom, 12x digital zoom
focal length: f=5~60mm
min. Illumination:0.2lux (color), 0.02lux (b/w), 50 ire
focus:auto / manual / semi-auo
iris:auto / manual
shutter speed:128x~1/120000 sec
agc:normal / high / off
white balance:auto / manual / (red, blue gain adjustable)
blc:low / middle / high / off
flicker less:selectable
ssnr:low / middle / high / off
environmental spec:
operating temp:-10 °c ~ + 70 °c
operating humidity:10 ~85%
rated power:dc12v / 1a,
dimensions: ø138x212mm
n. Weight:1.90kg
