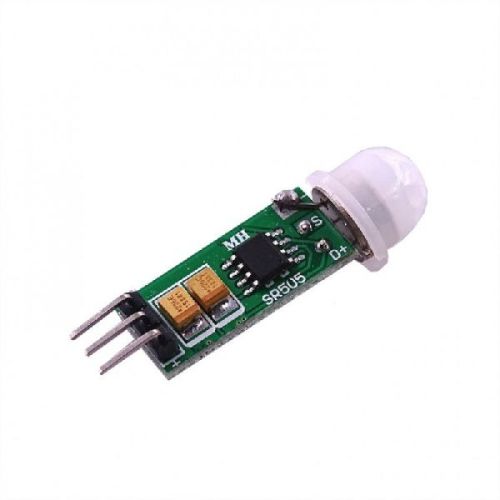

Mini Infrared Detector Module

₹ 105 / Piece

Repeatable triggerthe sensor output high, the delay period, if there is human activity in its sensing range, the output will remain high until people leave after the high variable delay Low (automatically extended sensor module detects the human body after every activity a
Wide operating voltage rangethe default operating voltage DC4.5V-20V.
Operating Voltage Range:DC4.5-20V
Distance Measuring Range:3 meters
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location All over the world

Product Details

Working Temperature Range:-20°C ~ 80°C
Triggerrepeatable trigger (default)
Output levelHigh 3.3V / Low 0V
Operating Voltage Range:DC4.5-20V
Average Current Consumption (mA):0.06
Weight (gm):10
Induction angle:<100-degree cone angle
Dimensions (mm) LxWxH:10 x 23 x 5
Sensor Lens Diameter:10mm
Micropowerquiescent current <50 microamps, especially for battery-powered automatic control products.
Distance Measuring Range:3 meters
Output high signaleasy docking and all kinds of circuits.
Repeatable triggerthe sensor output high, the delay period, if there is human activity in its sensing range, the output will remain high until people leave after the high variable delay Low (automatically extended sensor module detects the human body after every activity a
Wide operating voltage rangethe default operating voltage DC4.5V-20V.
Model:HC-SR505
Delay time:Default 8S + -30% (can be customized)
Automatic inductionto enter the sensing range of the output is high, people leave the sensor range automatically delay off high, output low. Ultra-small size.
