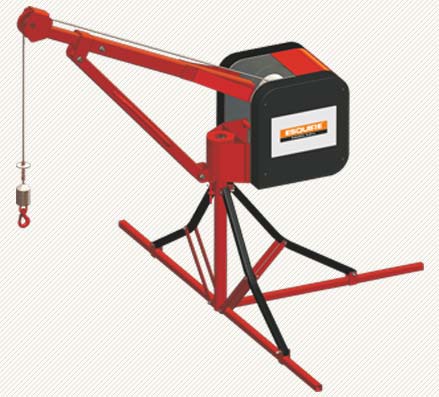

Red Mini Lifting Crane, Certification : ISO 9001:2008

MaterialMild Steel
CertificationISO 9001:2008
Capacity250 Kg To 500 Kg
ApplicationLifting Bricks, Cement, Concrete, Tools, And Light Equipment On Small Construction Sites
Supply TypeExporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

MaterialMild Steel
CertificationISO 9001:2008
Country of OriginIndia
Lift Speed20-25 Meters/min
ApplicationLifting Bricks, Cement, Concrete, Tools, And Light Equipment On Small Construction Sites
Capacity250 Kg To 500 Kg
Motor Power2 HP To 3 HP
WeightApprox. 130-200 Kg
Rope TypeSteel Wire Rope, 8-10 Mm Diameter
Lifting HeightUp To 30 Meters
MountingRoof-top Or Portable Base With Clamps, Some Models With Wheels
Boom Rotation360° Swivel Arm (manual Or Motorized)

Technical Data	ML 250	ML 350	ML 600
Capacity (Gross)	250 KG	350 KG	600 KG
Max Lifting Height	40 Meters	60 Meters	80 Meters
Wire Rope	8 mm	8 mm	8 mm
Speed	20 Mtr/Min	20 Mtr/Min	20 Mtr/Min
Boom Length	1650 MM	1650 MM	1300 MM
Size (LWH) MM	352529652600	352529652600	342129142345
Weight KG	260 KG	270 KG	340 KG
Geared Brake Motor	1 HP	2 HP	3 HP
Phase	Single/Three	Single/Three	Three
