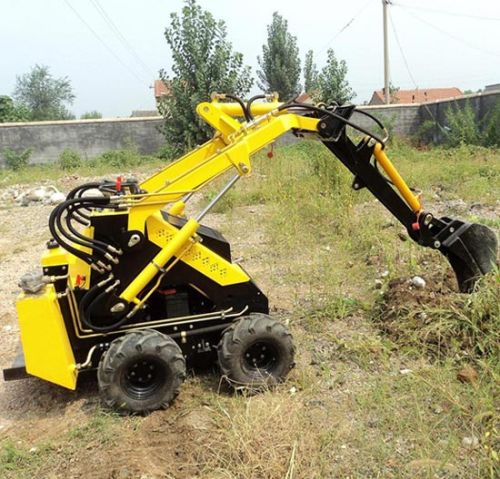

Mini Loader - (jl300)

jl300 specifications
model jl300
engine model b&s rated power(kw) 15.435(21hp)
rotating speed(rpm) 3600
noise (db) 95
hydraulic system system pressure(mpa) 17
working time(s) lift tipping bucket landing
4.27 1.34 3.31
performance parameters metric imperial
rated load 300 kg 441 lb
bucket capacity 0.15 m3 5.33 ft3
max heavily lift 375 kg 827 lb
max.travel speed 0-5.5 km./h 0-3.4 mile/h
operating weight
solid tyres bodywork 940 kg 2072 lb
ordinary tire body 886 kg 1953 lb
widened tire body 850 kg 1874 lb
caterpillar vehicle 1068 kg 2355 lb
tire model solid tyres 16*6-8
ordinary tire 5.00-8
widened tire kt-302 18*9.5-8 6p/tl
herringbone engineering births 18*6.5-8
rim solid tyres 4.33r-8
ordinary tire 3.50d
widened tire 8*6.5
fuel tank capacity 25l
oil tank capacity 25 l
engine displacement 627 ml
bucket breakout force 550kg tipping load 325kg
