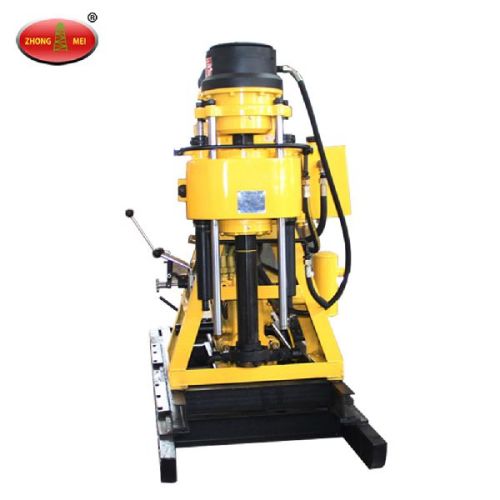

Advantages of Mini Mobile Hydraulic Water Borehole Drilling Machine XY-3 Mini Mobile Hydraulic Water Borehole Drilling Machine has 8 positive rotation gear, high speed, strong torque, widely scope of application. Equip hydraulic chuck, XY-3 Borehole Drilling Rig Machine can complete no-stopping rotating.Big inner diameter, use big or middle hexagonal driving lever.Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas. Parameters of XY-3 Mini Mobile Hydraulic Water Borehole Drilling Machine Unity Drilling Rig Machine Specification Drilling depth 600m Open hole caliber 300mm End hole caliber 75mm Drilling angle 90°~65° Drill weight (No include power) 1750kg(Electric Machinery) 1830kg(Diesel Engine) Unity machine dimensions 2220×900×1800mm Distance away from hole 280mm Spindle          Speed Forward 57 99 157 270 470 742 1024 Reverse 45 212 Stroke 560mm Spindle inner diameter 96mm Spindle lifting capacity 6000kg hoist Reel caliber 200mm Hug floodgate belt width 90mm Tightrope caliber 12.5mm or 14
