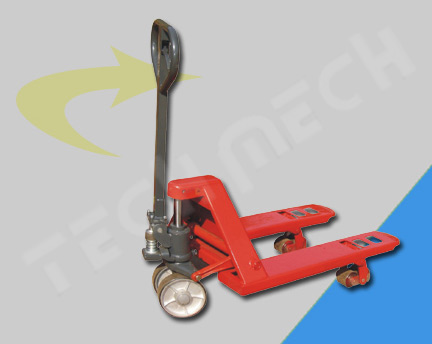

Mini Pallet Truck

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Full hydraulic system. Bullet connection between steering shaft and pump piston. Easy to replace the rear wheel. Easy to maneuver with 180 degree turning radius.Grease fitting at all pivotal points to ensure long life and easy control. Special lowering valve to control the rate of descent and overload by-pass valve to make the trucks durable. Leak-proof and dual filtered hydraulic system for smooth operation. Extra reinforcenent in forks. Extra thick PU wheels. Three coates of stoving paint. Three position UP, DOWN, NEUTRAL control lever.Special rubber coated handle.

View More Details

Send Enquiry

Company Information

Tech Mech Handling Equipments

Delhi Road, Meerut, Uttar Pradesh

View Number

Member Since 19 Years
Nature of Business Retailer
Year of Establishment 1968

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MODEL NO.	TMSL-10	TMSL-20	TMSL-25	TMSL-25W
Capacity	1000 Kgs.	2000 Kgs.	2500 Kgs.	2500 Kgs.
Width over forks (W)	550 mm.	550 mm.	550 mm.	685 mm.
Fork length (L)	820 mm.	820 mm.	820 mm.	820 mm.
Minimum Fork Height (M)	80 mm.	80 mm.	80 mm.	80 mm.
Maximum Fork Height (H)	200 mm.	200 mm.	200 mm.	200 mm.
Steering Wheels PU (A)	180 x 62	180 x 62	180 x 62	180 x 62
Fork Rollers (4 Nos.) Tandern PU (B)	78 x 70 mm.	78 x 70 mm.	78 x 70 mm.	78 x 70 mm.
Self Weight (Approx.)	74 Kgs.	76 Kgs.	78 Kgs.	80 Kgs.
