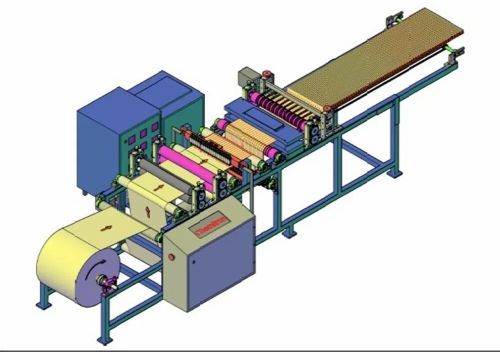

Mild Steel Mini Pleat Hepa Filter Machine

We feel proud to introduce ourselves as the well-known exporters, manufacturers, suppliers, traders and importers of Mini Pleat Hepa Filter Machine. The offered mini pleat hepa filter machine is very commonly used for the manufacture of air filters. Our supplied mini pleat hepa filter machine is made from high grade raw materials, sourced from very trusted vendors in the market.
Features:

• Optimal pleating speed
• Mild steel fabrication
• Equipped with media roll unwinding stand

Specifications:

• Maximum width of media pleating 610 mm.(24") / 1250 mm (48")
• Marking rollers assembly. Pleat depth. 18 to 96 mm (depends on requirement)
• Servo Motor PLC Control
• Roll unwinding stand with geared motor driven for paper feeding through Dancing roller
• Pneumatically operated Paper roll loading arrangement
• Paper holding arrangement for end pasting.
• Pleat compactor with adjustable height
• Pleat counter with marking device
• Idle grooved rollers for on line drying of Hot melt.
