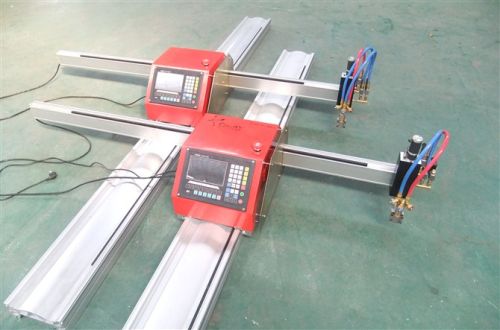

Mini Portable CNC Plasma and Flame Cutting Machine

Mini portable cnc plasma and flame cutting machine.
features
1. Good working stability, high frequency interfere effectively plasma, lightweight portable; support two cutting ways of flame and plasma;
2. Economic benefits, the structure and design are contracted.
3. It adopts humanistic positive man-machine conversation and operates easily;
4. Cutting has high quality, high effect level, and high precision;
5. Programmable cutting arbitrary shape parts of line and arc;
6. Dynamic and static graphic display, easy to learn. Can convert cad file to program
file in computer, through usb flash drive transmits to machine to realize cutting all
kinds' graphs. And also can program and operate directly on the machine.
7. English and chinese interface can free to convert
8. Pre-sale will train and after-sale will track service.
technical parameters
model
qg-1020
qg-1225
qg-1525
power source
ac220±10%v,5060hz,220w
cutting mode
o2c3h8 or c2h2, plasma available
effective cutting range(mm)
1000×2000
1200×2500
1500×2500
track l×w×h(mm)
2500×273×60
3000×273×60
3000×273×60
track holder quantity
2
3
3
track holder l×w×h(mm)
500×80×40
cutting speed(mmmin)
0-3500 (max 4000 available)
flame cutting thickness(mm)
5-150 (o2c3h8 or c2h2)
plasma cutting thickness(mm)
in terms of plasma power source
moving precision
±0.2mmm
torch
flame, electric height adjustment(±60mm)
host weight(kg)
19
total weight(kg)
120
130
140
gas pressure(mpa)
max.0.1
oxygen pressure(mpa)
max.0.7
type of gas
propane, ethine
emergency stop
yes
working temperature
-5～45℃
relative humidity
＜95% no condensing
remark: standard configuration is 2# propane cutting nozzle if no special requirement.
