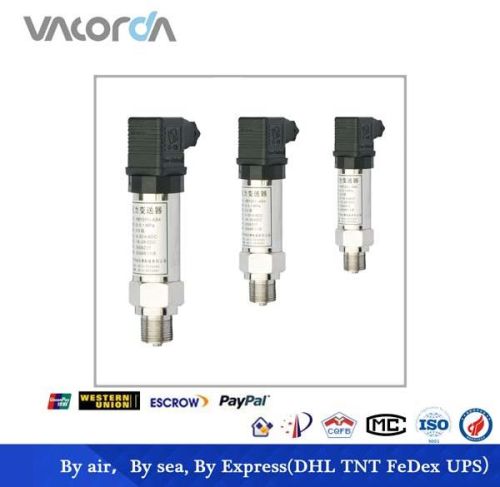

Mini Pressure Transmitter

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Mini Pressure Transmitter has an operating temperature of -50 to +80 oC. We are unsurpassed Manufacturer and Supplier of Mini Pressure Transmitter in China. These Mini Pressure Transmitters run on a power supply of 24VDC and relative humidity of ≤85%. Durability, long functional life and high precision completely define our Mini Pressure Transmitter.

View More Details

Send Enquiry

Specifications

Measuring range	-0.1~60MPa/ -1bar~600bar (minimum range:-5kPa~0; 0~5kPa; ±2.5kPa)
Accuracy class	0.5; 0.25
Output signal	4~20mADC; 0~20mADC
Loading resistance	500Ω (when 24V power supply)
Transmitting	< 1000m
Power supply	24VDC
Operating temperature	-50 ~ 80 ^oC
Environment temperature	-40 ~ +50 ^oC
Relative humidity	≤85%
Wetted material	304, 316L 1Cr18Ni9Ti
Process connection	M20 x 1.5 G1/2" or customize
Electrical connection	Cable, hirschman, aviation plug
Explosion-proof	ExiaIICT6Ga
Protection class	IP65 (air connection to IP63)
Weightï¼ï¿½	315g
