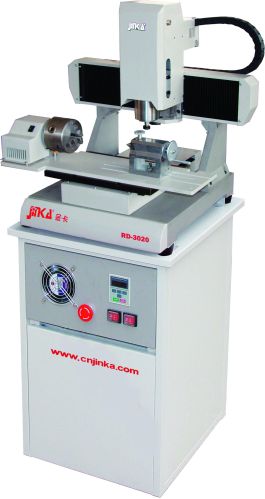

Mini Rotary/Cylinder CNC Engraving Machine

Features:
-Employing imported high precision rolling ball screw possesses high accuracy and speed.
-Adopting constant power frequency adjustable water cooling spindle features good performance, large torque, and high efficiency.
-Intellective control of the processing speed, idle speed and down speed improves efficiency and quality of processing, also extends the tool's life time.
- CNC control system features recovery function by remembering the working coordinate and continue to work with it after cutting of power or braking of tools.
-Compatible with any advanced software such as Type3/Artcam/CAXA/UG/PRO-E/Mastercam/Ucancam and so on.
Standard configuration:
Control system: NC Studio motion control system
Driver: Stepping motor
Transmission type: Rolling ball screw transmission
Spindle: Variable frequency constant power water cooling spindle
Guide rail and motion slides: Linear square rail and motion slides imported from Taiwan
Body: Casting body
Gantry: Cast aluminum
Dust cover for X axis
Options:
-Air cooling spindle
-DSP control system
Working Area of X Axis (mm): 200mm
Diameter of Rotary Axis (mm): 80mm
Idle speed: 4m/min
Processing speed: 2m/min
Spindle power: 800W~1.5KW Variable frequency water cooling spindle
Rotary rate: 6000 or 24000 rpm/min
Working voltage: AC220V/50Hz or AC380V/50Hz
Engraving tool: Φ3.175/4/6
File format: G code/ HPGL
Positioning precision:±0.03mm
Repeat positioning precision: ±0.02mm
