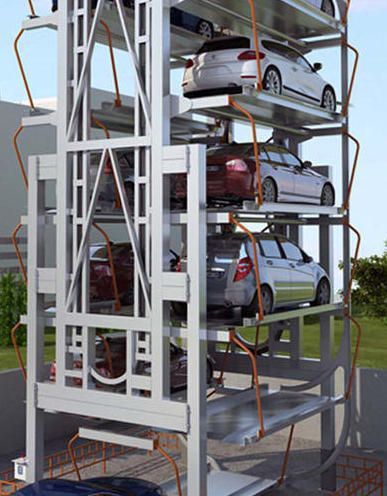

We are a leading Manufacturer, Exporter, and Supplier of Vertical Rotary / Carousel Type Mini Rotary Parking System from India. Our innovative system has a capacity of 6-12 cars with a car weight capacity of up to 2300 kg per parking pallet. Equipped with safety features like mechanical lock, this system operates with a power of 1-3kw and a rotation speed of 2-3 minutes per retrieval cycle. Certified with ISO 9001:2008, our Mini Rotary Parking System offers efficient and reliable parking solutions for your space-saving needs.
| Parameter | Specification |
|---|---|
| Model | Rotary Parking System (PD-RPS-8/10/12/14) |
| System Dimension | L-6400 X W-5100 X H-9900/11700/13500/15300 |
| Car Dimension | Sedan - L-5000 X W-2000 X H-1700 |
| Qty. of Car / System | 8/10/12/14 NOS. |
| Weight | 2000 Kg |
| Inside Pallet Width | All LVL - 2100 MM |
| Lifting Motor | Motor 20 HP (15 Kw) X 4P |
| Lifting Speed | 10-12 Meter/Minute |
| Control | PLC |
| Operation | HMI |
| Electric Power | AC 415V X 3Phase X 50 Hz + Earthing |
| Safety Feature | 1) Limit switch 2) Sensor 3) RFID |
