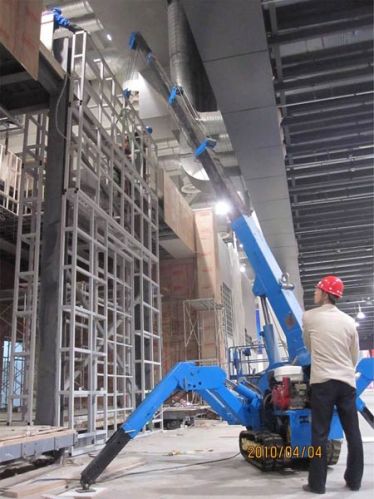

Mini Spider Crawler Crane

Weare offering mini spider crawler crane.
2. Engine and machine parameters (table 2)
engine model honda gx390
displacement 389.2ml
max. Output power 6.6kw (13hp)
ignition system transistor magnetic ignition (non-contact)
gasoline style four stroke, single cylinder, forced air cooling
direction of rotation counterclockwise (facing output shaft)
starting performance 30（-5°c~40°c）
battery capacity 12v 32ah
fuel typefuel tank capacity automotive gasoline6l
hydraulic（crane） tank capacity 26l
l×w×h 2850mm×760mm×1450mm
motor oil pump dedicated electromotor 4kw
total weight 1800kg
3、remote control device parameters
industrial wireless
remote control model box1.1
effective operating range 100m
reaction time 40ms
pressure, power dc12v、less than 12w
waterproof standard ip-67
working temperature -10—75 centigrade
encoder decoder microcomputer processor
4. Motor parameters
motor model mp-5p-4h523,3.75kw
three phase asynchronous motor 4kw
