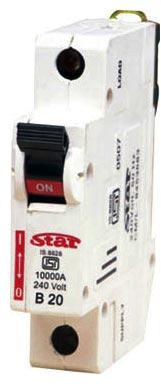

We are recognized as a reliable manufacturer and supplier of a huge assortment of miniature circuit breaker. Our range of star m.c.b.s is housed in injection molded flame retardant, high strength thermo plastic material having high melting point, and can withstand high temperature conditions. Trip free mechanism i.e. The breaker trips internally even if the operating knob is held in on position. Our range of miniature circuit breaker finds application in various applications including houses and offices. Apart from this, these energy saving mcbs are priced reasonably.
features :
low power consumptionhigh durabilityoperational safetygreater conveniencehigh dielectric strength
the tripping mechanism is thermal magnetic type :
finger protection : the new tech mcb's are finger protected to ip 20 as per is 8828: 1996 and iec 898 hence the live current carrying parts cannot be touched accidentally.magnetic protection : when overload values exceed the values specified for different characteristic curves i.e. B & c a strong magnetic field is induced which results into instantaneous tripping of mcb.effective quenching : arc produced of contacts is rapidly pushed magnetically into a 12 plates arc chamber where it is broken down effectively & cooled.trip free mechanism : trip free mechanism ensure tripping of mcb even if the knob is kept in 'on' position.special silver alloy contacts : the contacts are made out of special silver alloy inlaid strips which gives low contact resistance resulting in low voltage drop & hence very low power consumption and temperature rise. These contacts have very excellent anti weld properties.thermal protection : small overloads are detected by fine calibrated bimetal which deflects if the current is greater than the rated current and hence tripping the mcb.dual termination : the incoming terminals are designed for termination of busbar as well as cable individually or simultaneously. Terminals are suitable for cables upto 25mm².housing : the housing of newtech 10ka mcb is injection moulded from special grade 30% gf, fire retardant ul94, v-o polyester which is anti-tracking and non-hygroscopic and can withstand high temperature.current limiting design : the current limiting design does not allow fault current to reach its peak |k/2 & cut it at a very low value (ld). This keeps let through energy very low which enables mcb to clear short circuit breaking capacity of 10ka effectively.
